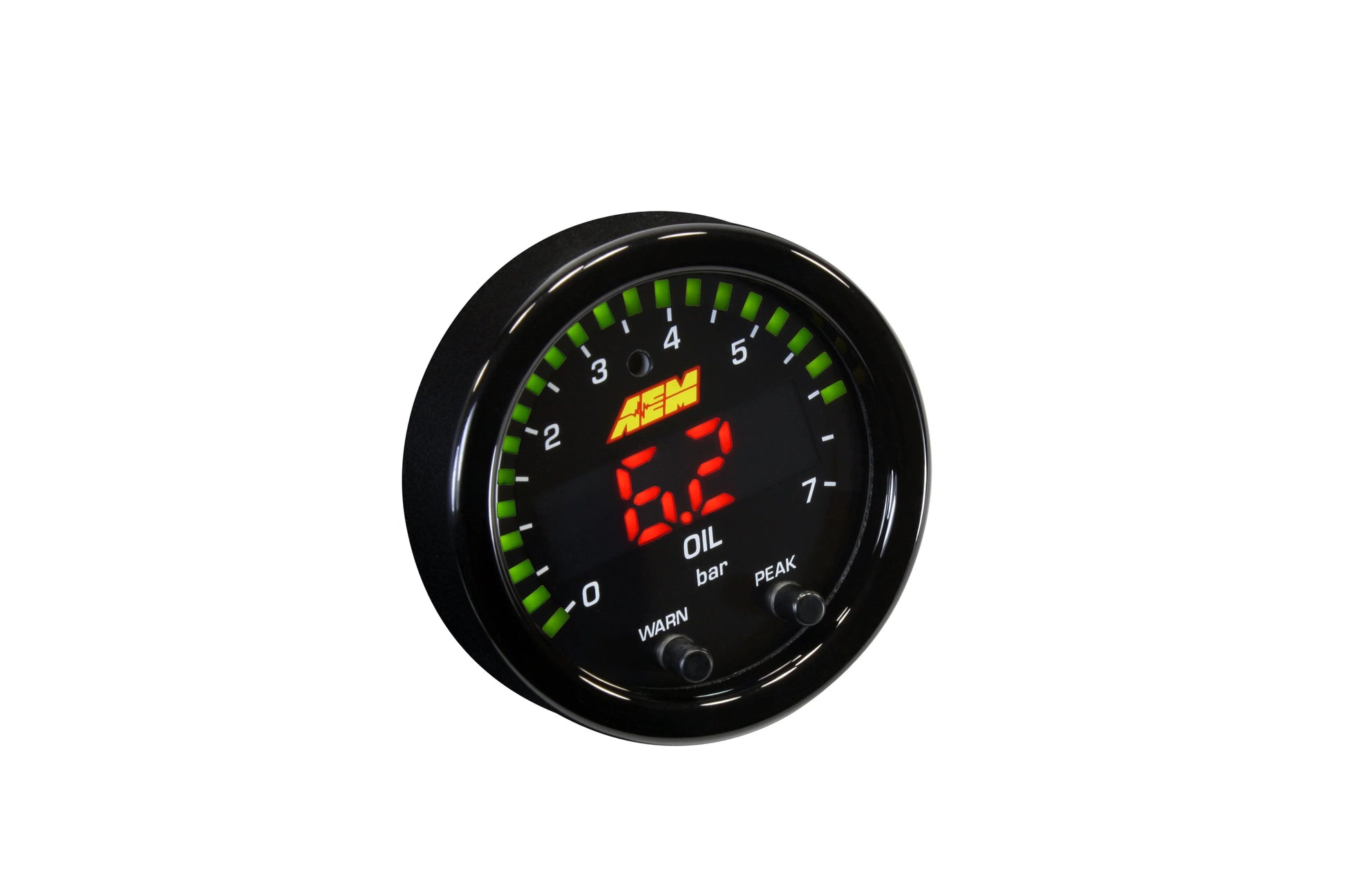

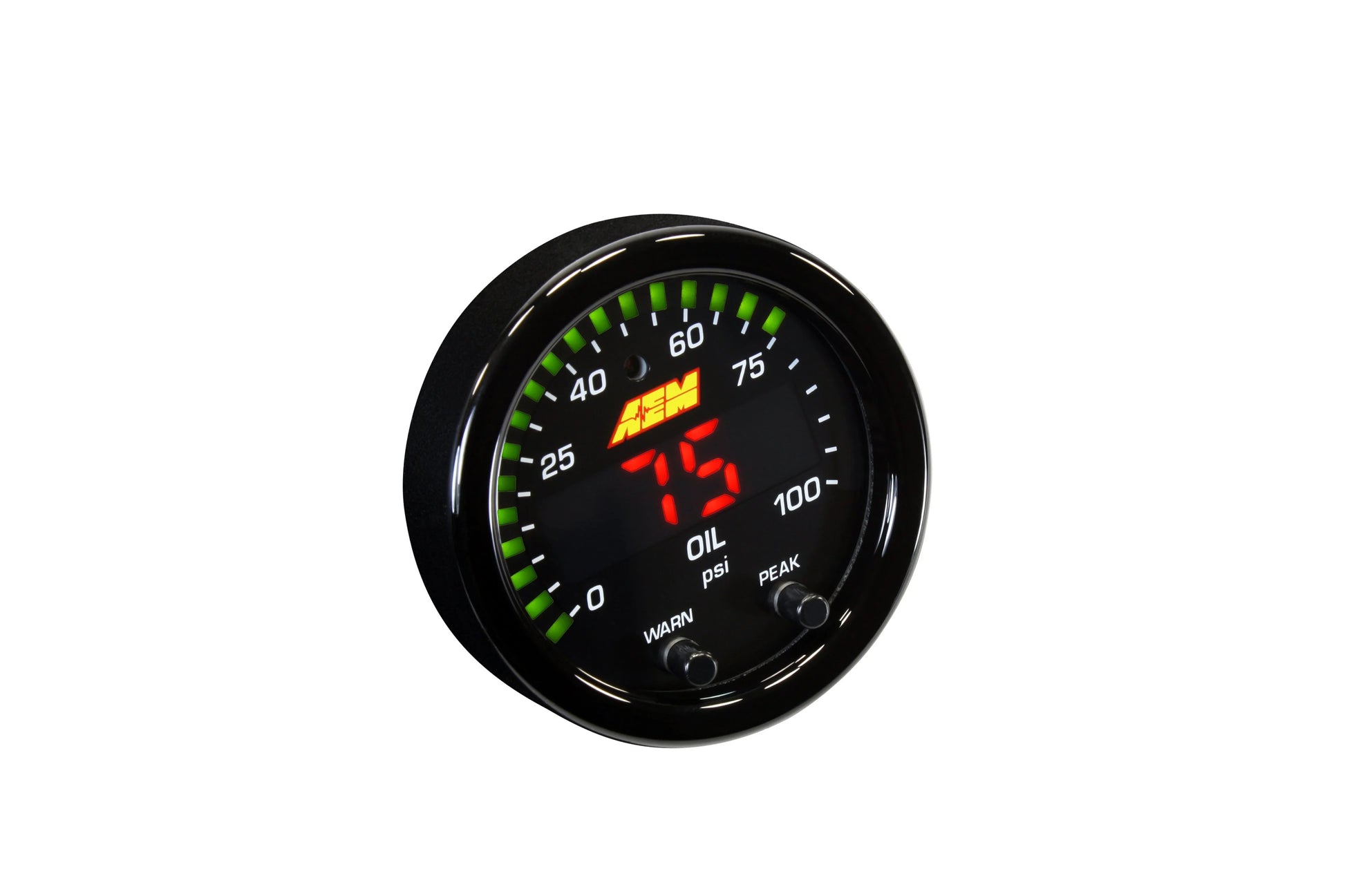

AEM X-Series Oil Pressure Gauge

The AEM X-Series Oil Pressure Gauge provides accurate real-time oil pressure monitoring for Subaru WRX and STI performance applications. Maintaining stable oil pressure is critical during aggressive driving, canyon runs, track use, and high-performance tuning.

Built with AEM’s X-Digital technology, the X-Series Oil Pressure Gauge features a fast-response digital display, programmable warning alerts, and an ultra-slim motorsport-inspired housing designed for clean installation in Subaru interiors.

Ideal for EJ and FA engine builds ranging from daily-driven street cars to fully track-focused applications.

Features:

• 52mm gauge diameter
• Patented X-Digital technology
• Fast-response oil pressure monitoring
• Ultra-slim 0.825” overall gauge depth
• Gauge cup depth only 0.200”
• User-configurable display
• Auto-dimming display
• Peak recall function
• Programmable warning alerts
• AEMnet CANbus output
• 0-5V analog output
• RS232 serial output

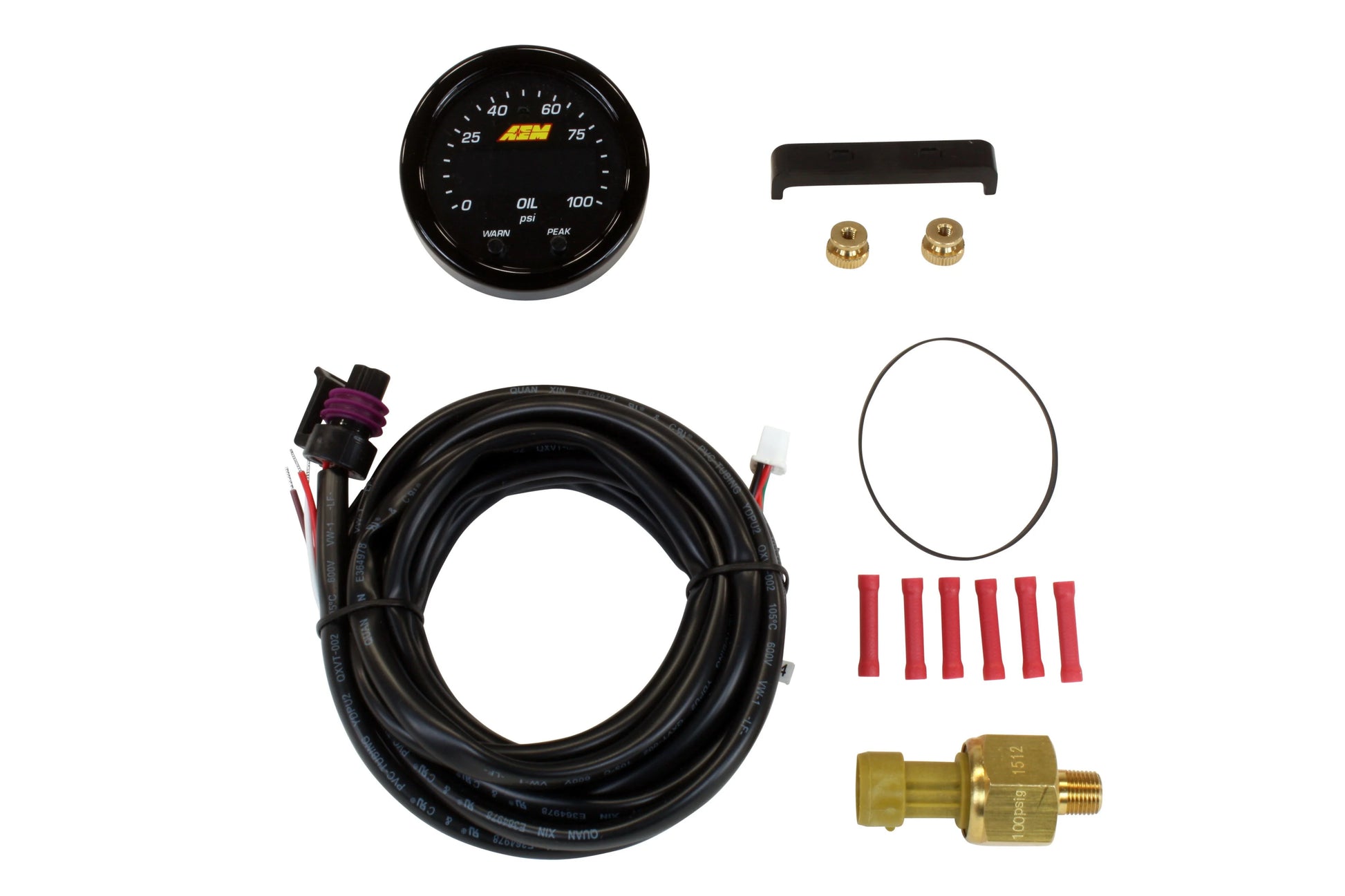

• Pressure sensor included
• Black bezel and black dual-faceplate included
• Clean motorsport-inspired digital display

Specifications:

• Pressure Range: 0-100 PSI
• Pressure Range: 0-7 BAR
• Gauge Size: 52mm / 2-1/16”
• Overall Gauge Depth: 0.825”
• Gauge Cup Depth: 0.200”
• Display Type: Digital LED
• Voltage Compatibility: 10–18 volts
• Output Type: AEMnet CANbus / 0-5V analog / RS232 serial

Ideal For:

• Subaru WRX & STI builds
• EJ and FA engine setups
• Street and track vehicles
• High-performance engine monitoring
• Turbocharged applications

Part Number:
30-0301
