AEM X-Series Boost Pressure Gauge

The AEM X-Series Boost Pressure Gauge delivers fast and accurate boost and vacuum monitoring for turbocharged Subaru WRX and STI applications. Built with AEM’s X-Digital technology, this gauge provides real-time boost data critical for high-performance street, track, and motorsport builds.

Features:

• 52mm gauge diameter
• Patented X-Digital technology
• Fast-response boost and vacuum monitoring
• Ultra-slim 0.825” overall gauge depth
• Gauge cup depth only 0.200”
• User-configurable display
• Auto-dimming display
• Peak recall function
• Programmable warning alerts
• AEMnet CANbus output
• 0-5V analog output
• RS232 serial output
• Black bezel and black dual-faceplate included
• Clean motorsport-inspired digital display

Specifications:

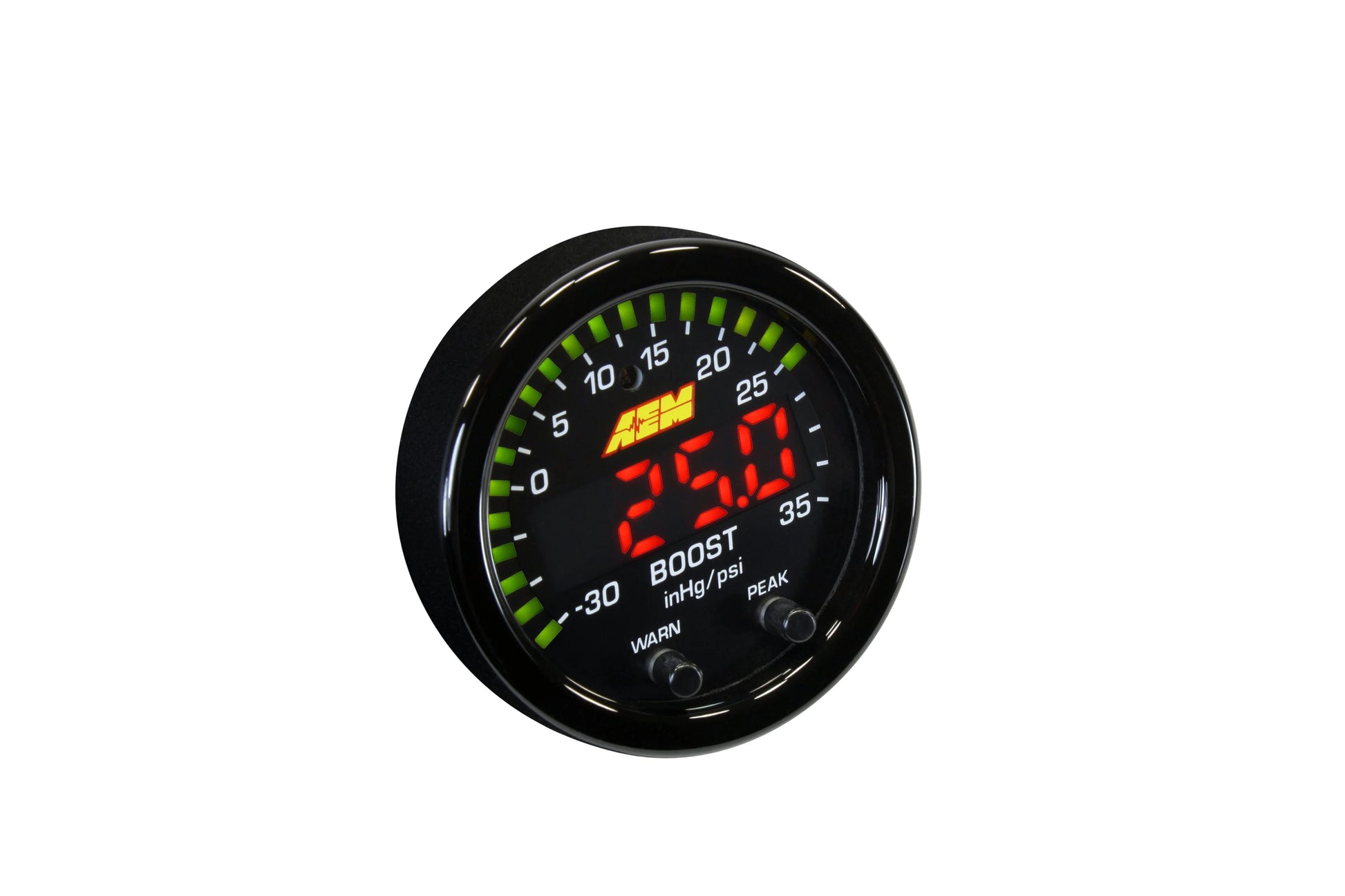

• Boost Range: -30inHg to 35 PSI

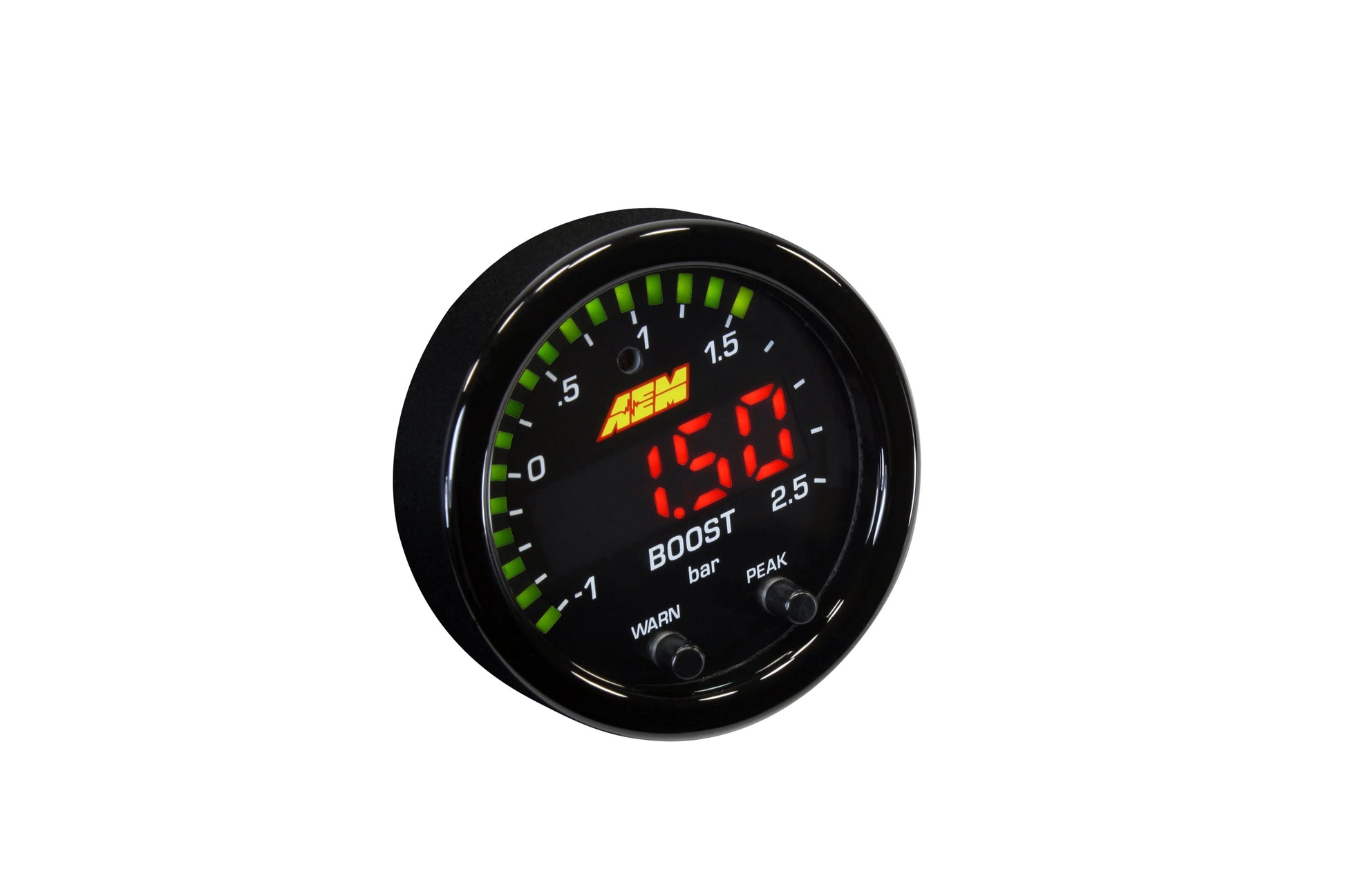

• Boost Range: -1 BAR to 2.5 BAR
• Gauge Size: 52mm / 2-1/16”
• Overall Gauge Depth: 0.825”
• Gauge Cup Depth: 0.200”
• Display Type: Digital LED
• Voltage Compatibility: 10–18 volts
• Output Type: AEMnet CANbus / 0-5V analog / RS232 serial

Ideal For:

• Subaru WRX & STI builds
• Turbocharged street and track cars
• Boost-controlled applications
• Standalone ECU setups
• Engine monitoring systems

Part Number:
30-0306
