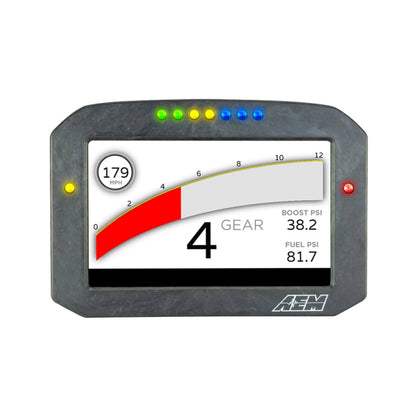

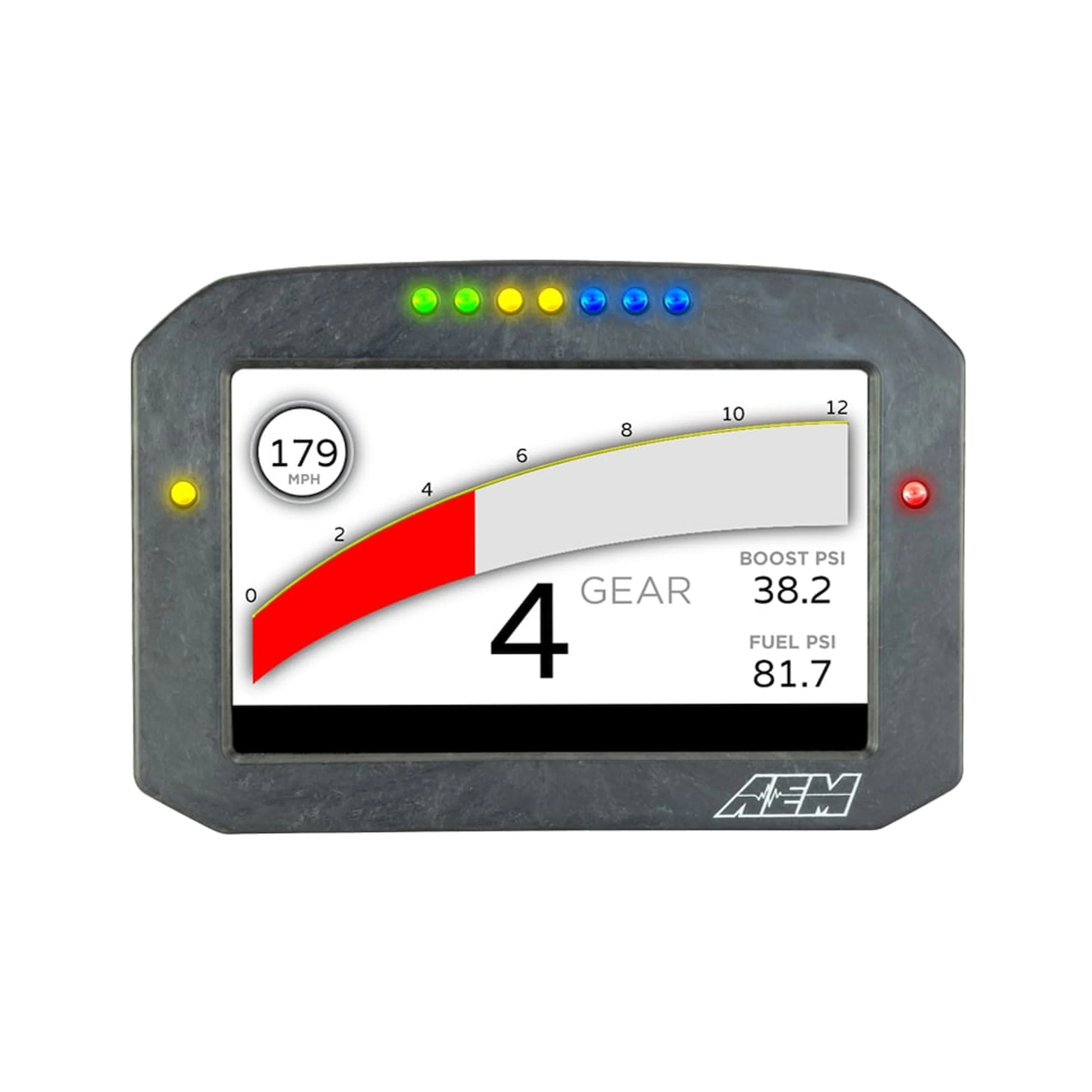

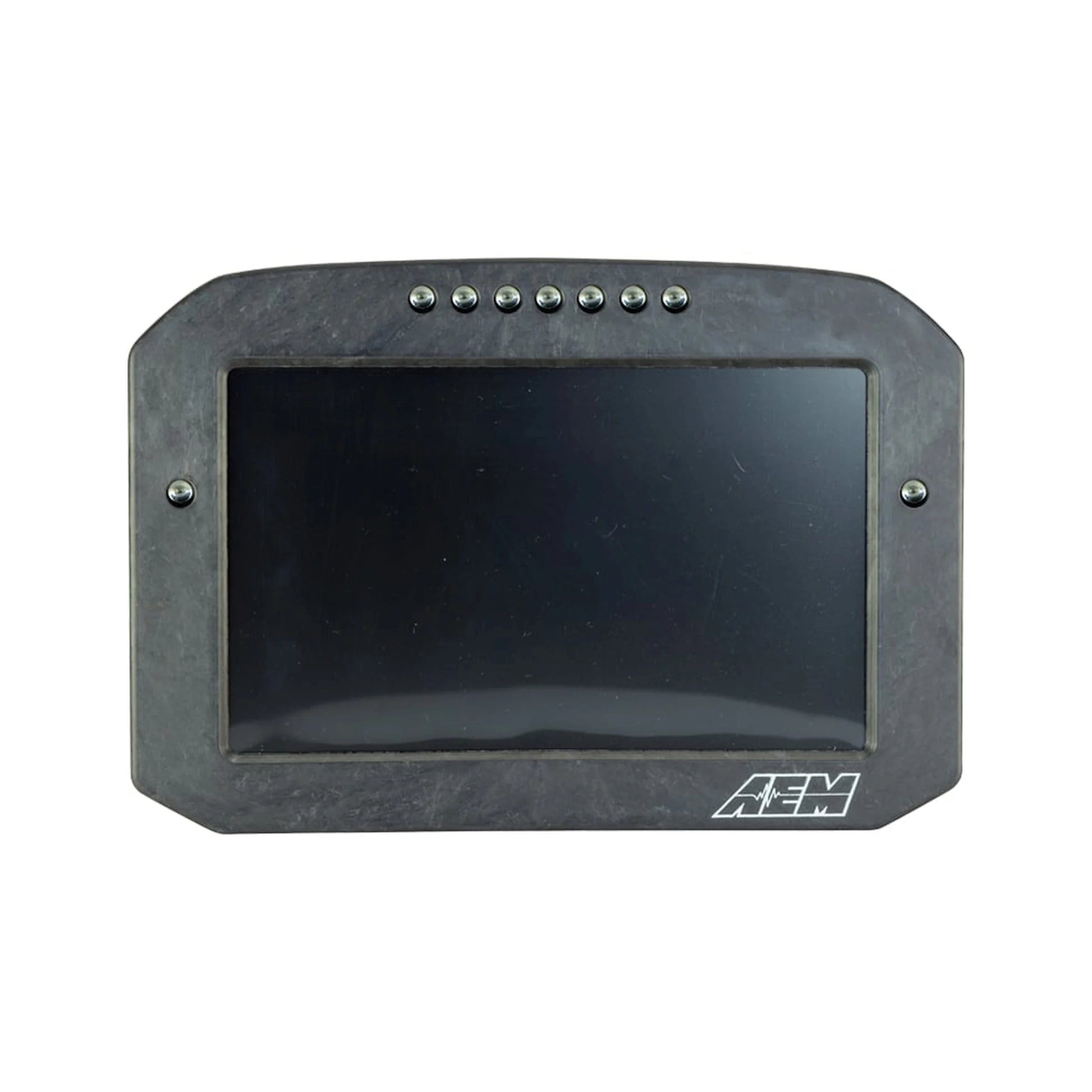

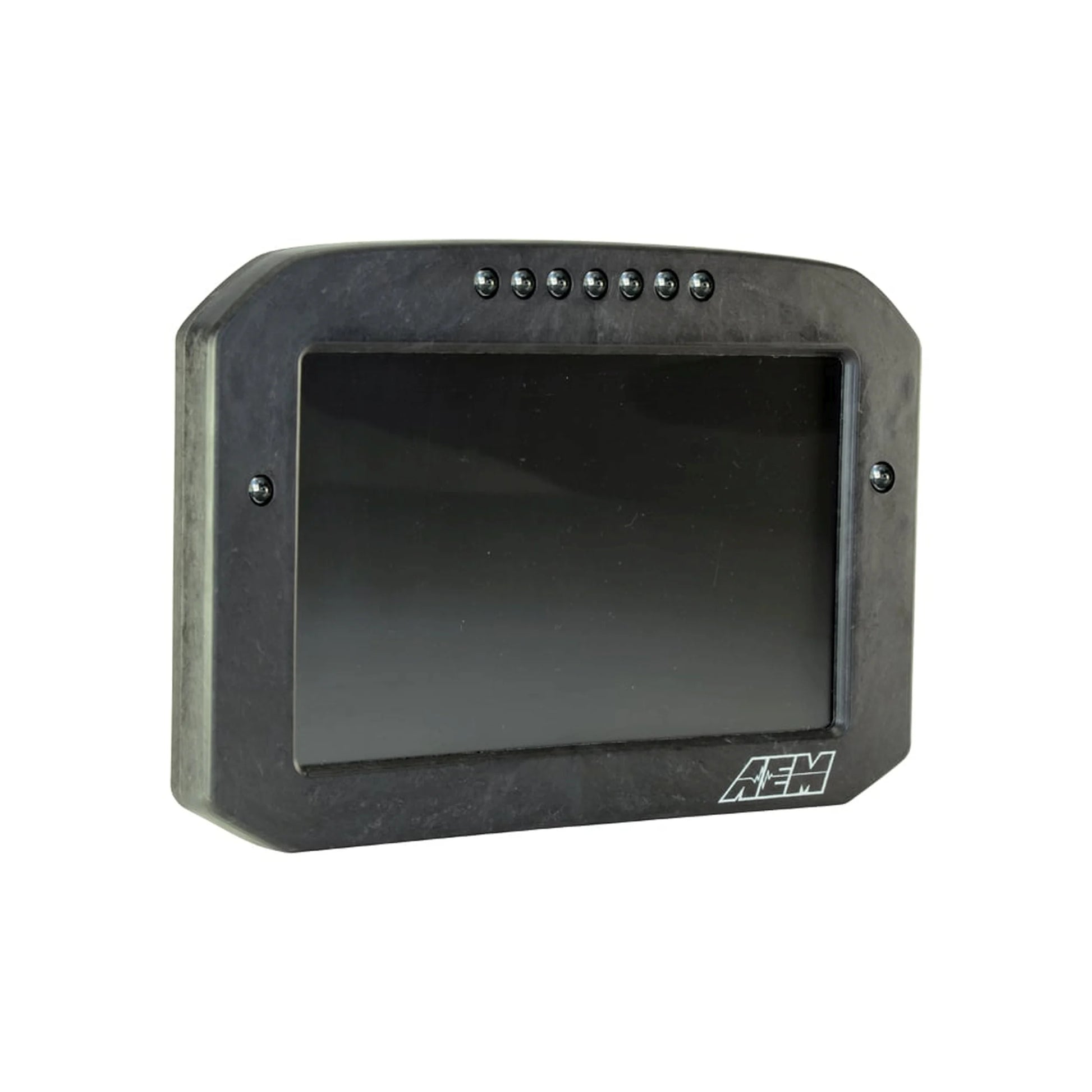

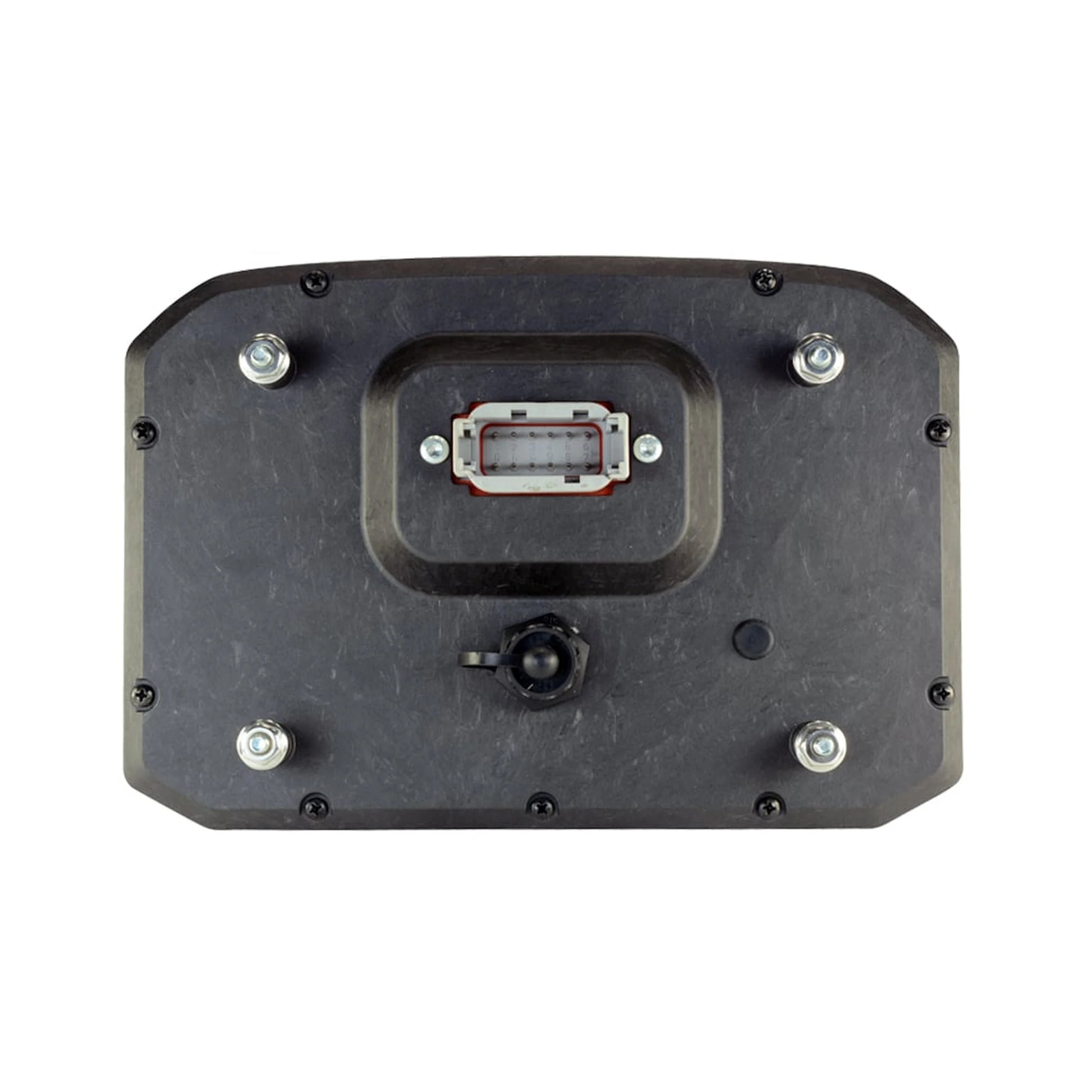

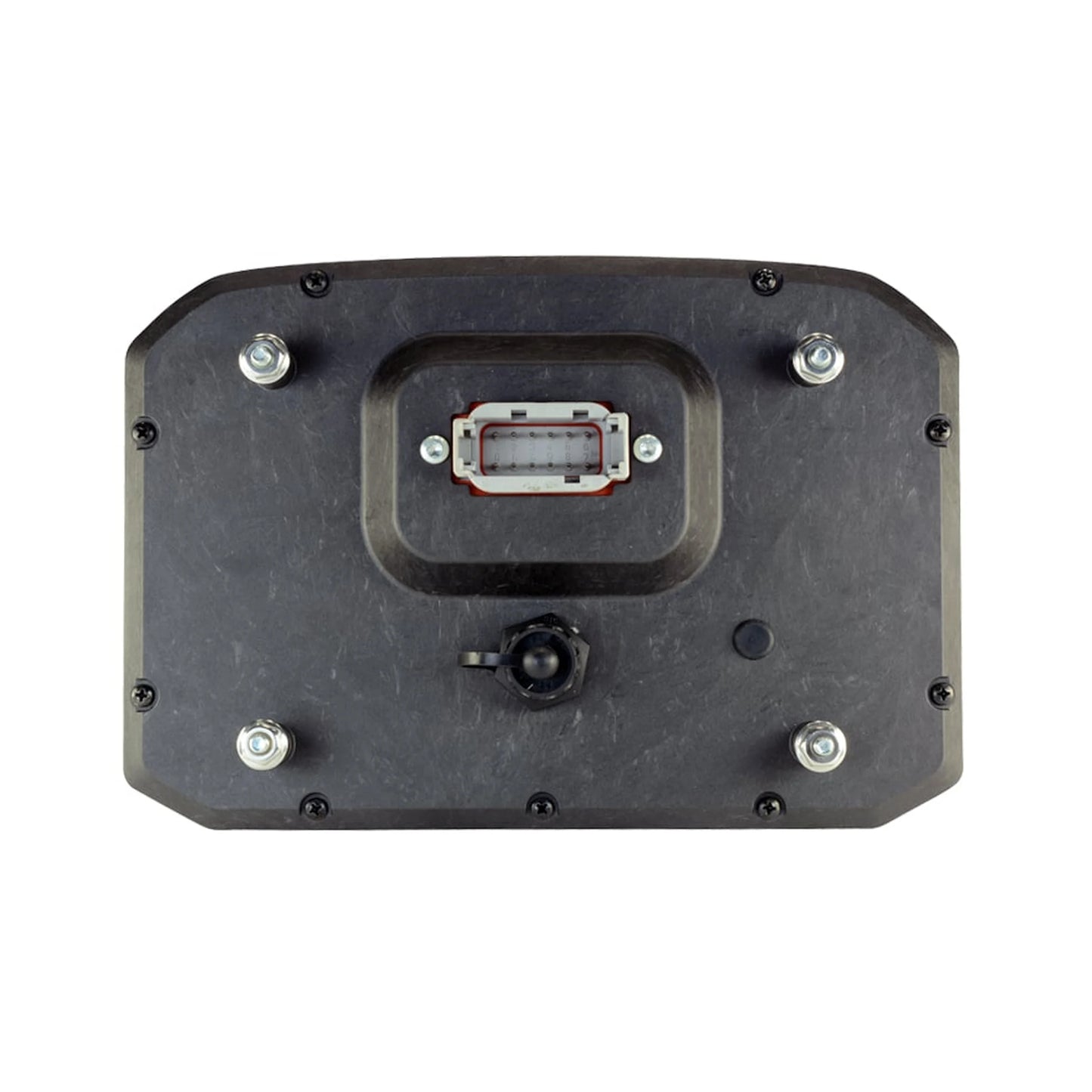

AEM CD-7F Carbon Flat Panel Digital Dash Display – 7" Flush-Mount Display

The AEM CD-7F Carbon Flat Panel Digital Dash Display is designed for custom flush-mount interiors, race panels, and full motorsports cockpit builds. It uses the same CD-Series digital dash platform in a flat panel housing, giving custom Subaru WRX/STI builds a cleaner integrated display option.

This is the right choice for customers building a custom dash panel, race interior, or dedicated track cockpit where the display will be mounted into a panel instead of using the standard CD-7 housing.

Features

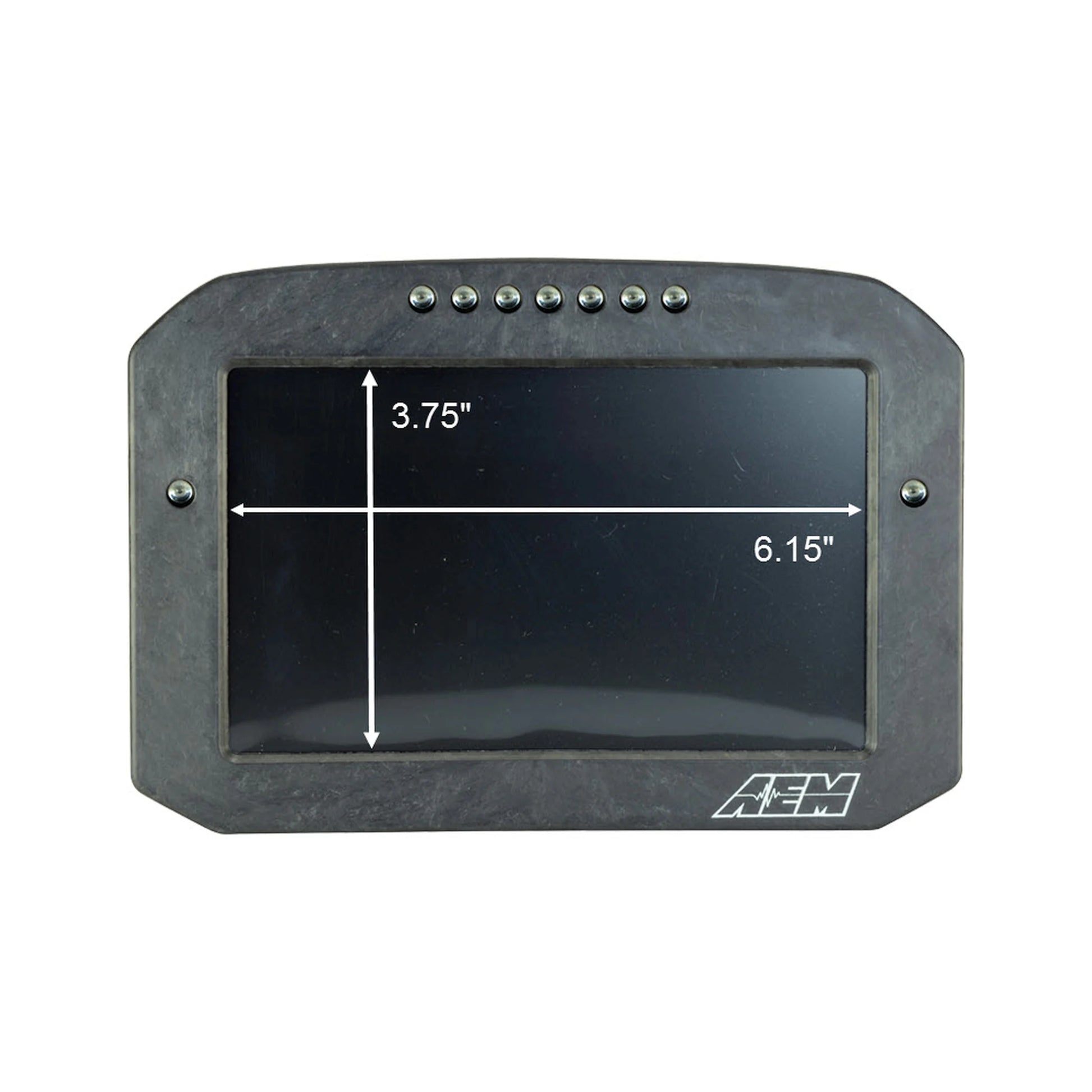

• 7-inch full-color flat panel digital display
• 800x480 screen resolution
• Direct sunlight readable display
• Lightweight carbon composite enclosure
• Designed for flush-mount and custom panel installations
• Seven programmable RPM / shift light LEDs
• Two additional programmable warning LEDs
• CAN-ready for AEMnet and compatible third-party CAN devices

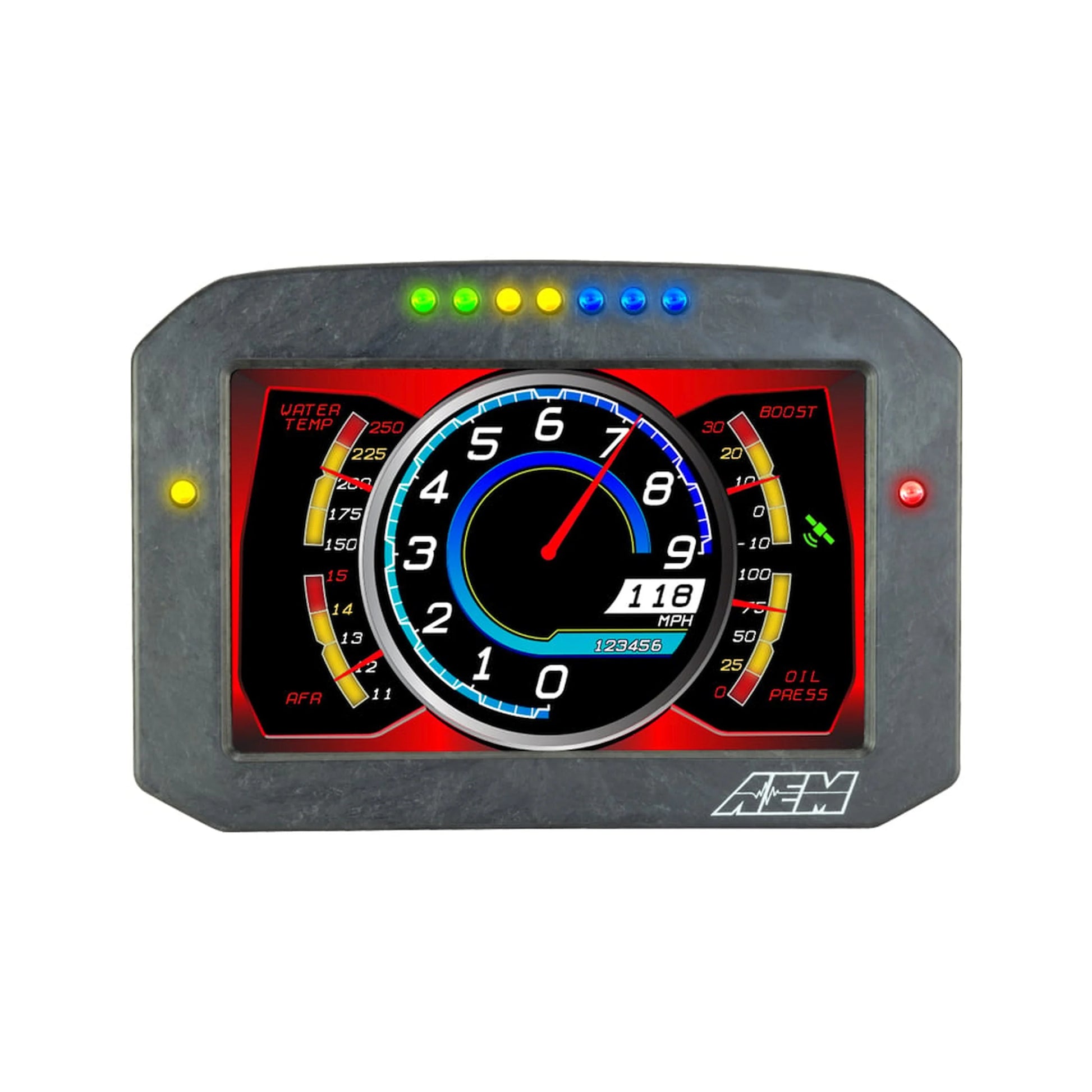

• Supports custom layouts through AEM DashDesign software

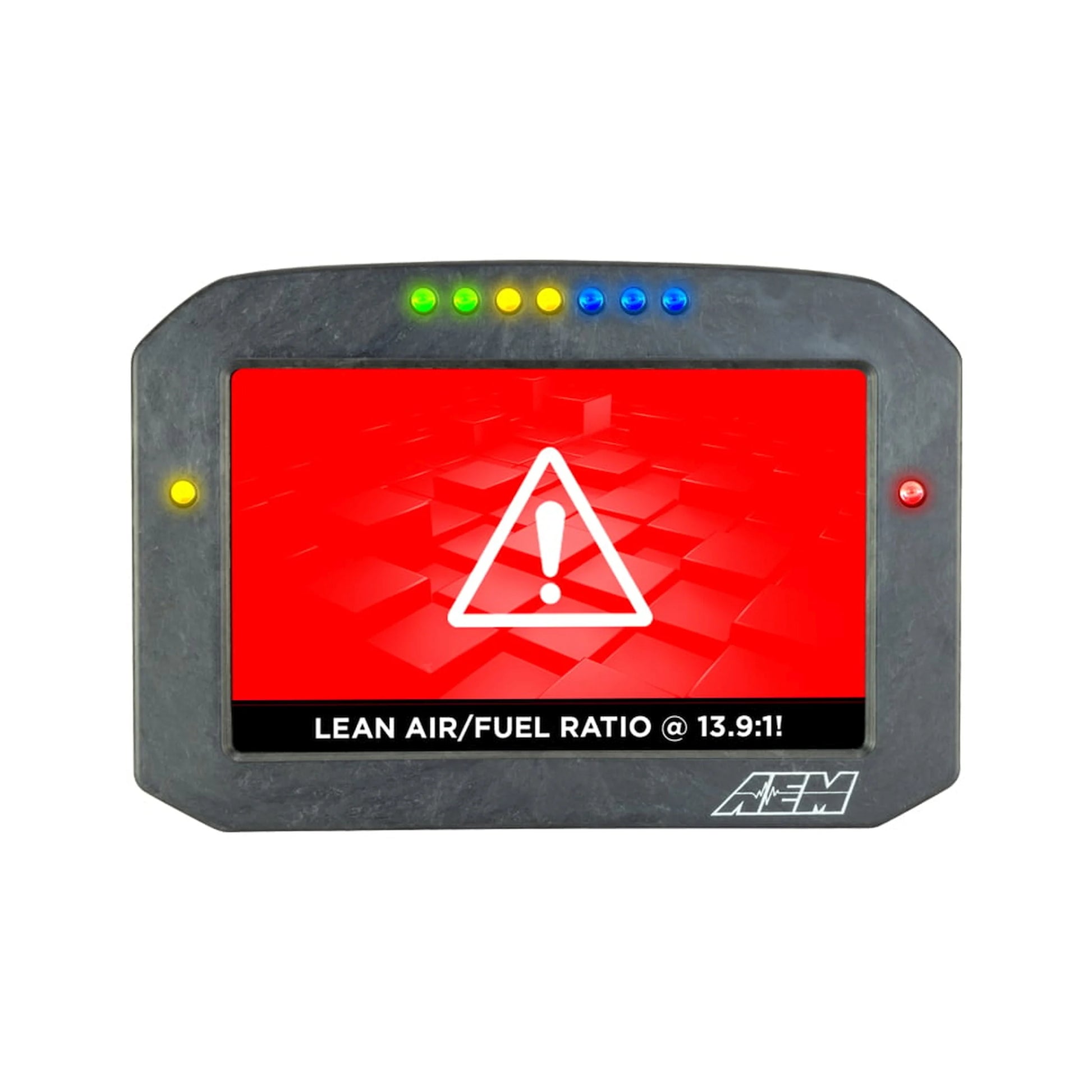

• Programmable warning pages and alerts
• Odometer function
• Wiring harness included

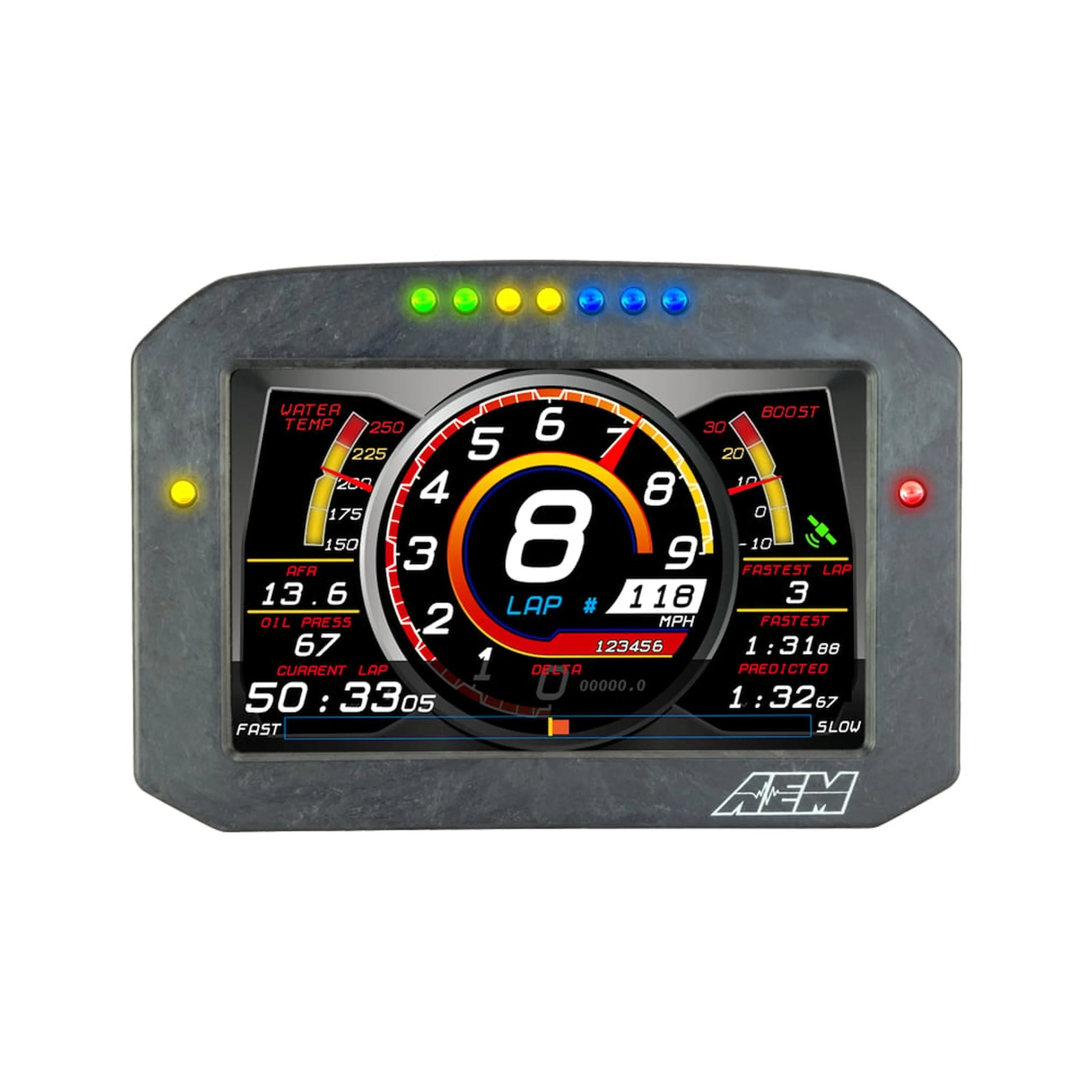

• Available with logging and GPS options depending on selected configuration

Important Install Note

The CD-7F flat panel version does not include built-in buttons. AEM external button kit 30-3610 is recommended/sold separately for page changes, memory reset, and dash control functions.

Fitment / Compatibility

Universal flat panel digital dash display for custom Subaru WRX/STI builds. This is not an OEM replacement cluster.

Compatible with custom Subaru applications including GC, GD, GR/GV, VA, and VB chassis when installed with the correct wiring, CAN, OBDII, aftermarket ECU, or sensor module setup.

2008+ Subaru applications may use AEM CD Dash OBDII CAN Adapter Harness 30-2217, sold separately, to display available OBDII CAN channels.

Pre-2008 Subaru applications require an aftermarket ECU/CAN output or AEM 30-2212 22 Channel CAN Sensor Module, sold separately.

Available data channels vary by model year, ECU, wiring, and vehicle CAN output. Professional installation and configuration are recommended.

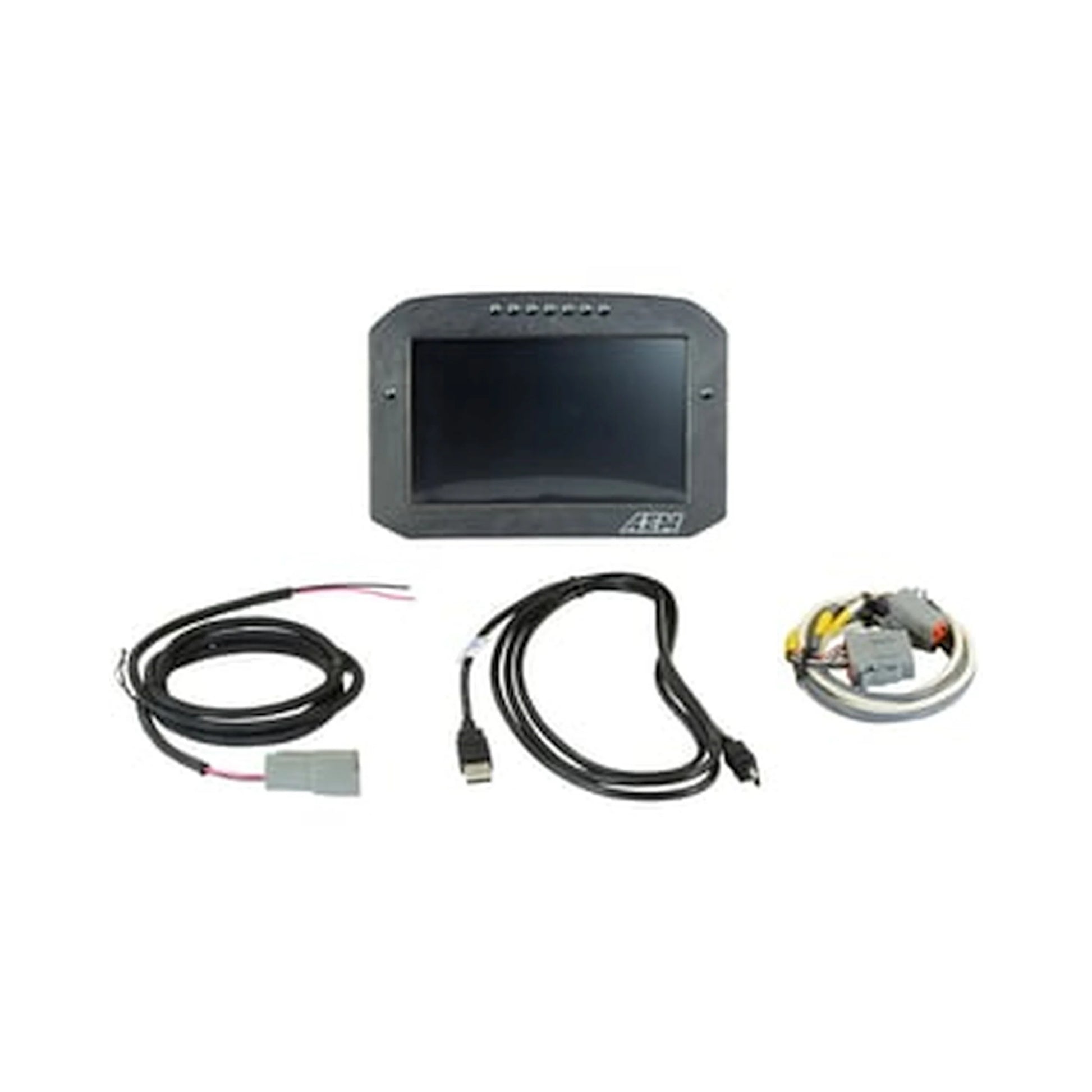

What’s Included

• AEM CD-7F Carbon Flat Panel Digital Dash Display
• Wiring harness
• GPS antenna included only with GPS-enabled configurations
• Internal logging included only with logging configurations
• External buttons not included

Configurations

30-5700F – CD-7F No Logging / No GPS
30-5701F – CD-7FL with Logging / No GPS
30-5702F – CD-7FG with GPS / No Logging
30-5703F – CD-7FLG with Logging + GPS

Recommended Add-Ons

30-3610 – AEM External Button Kit
30-2217 – AEM OBDII CAN Adapter Harness for 2008+ vehicles
30-2212 – AEM 22 Channel CAN Sensor Module for pre-2008/custom sensor setups
