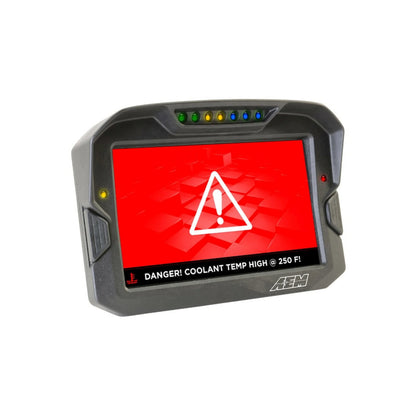

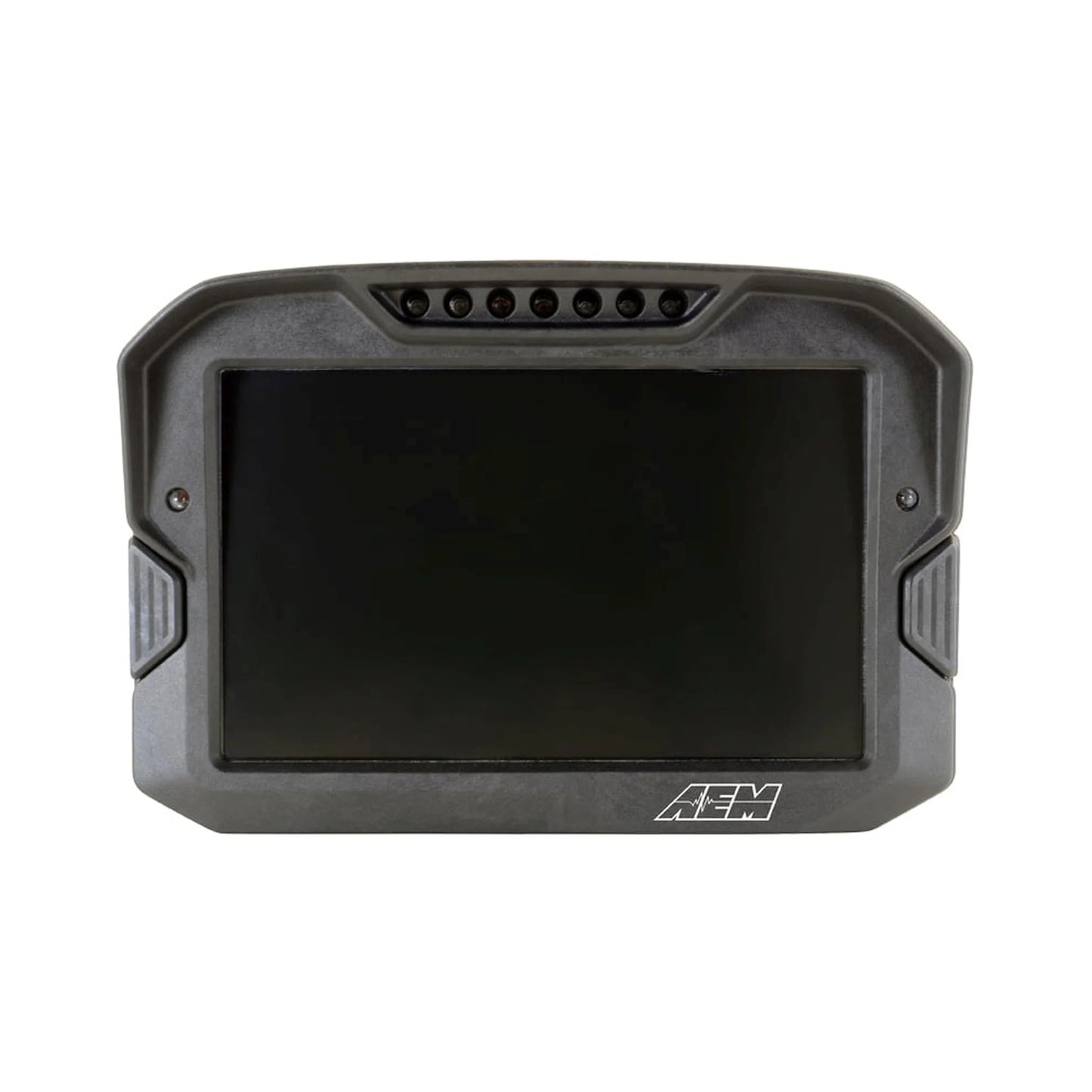

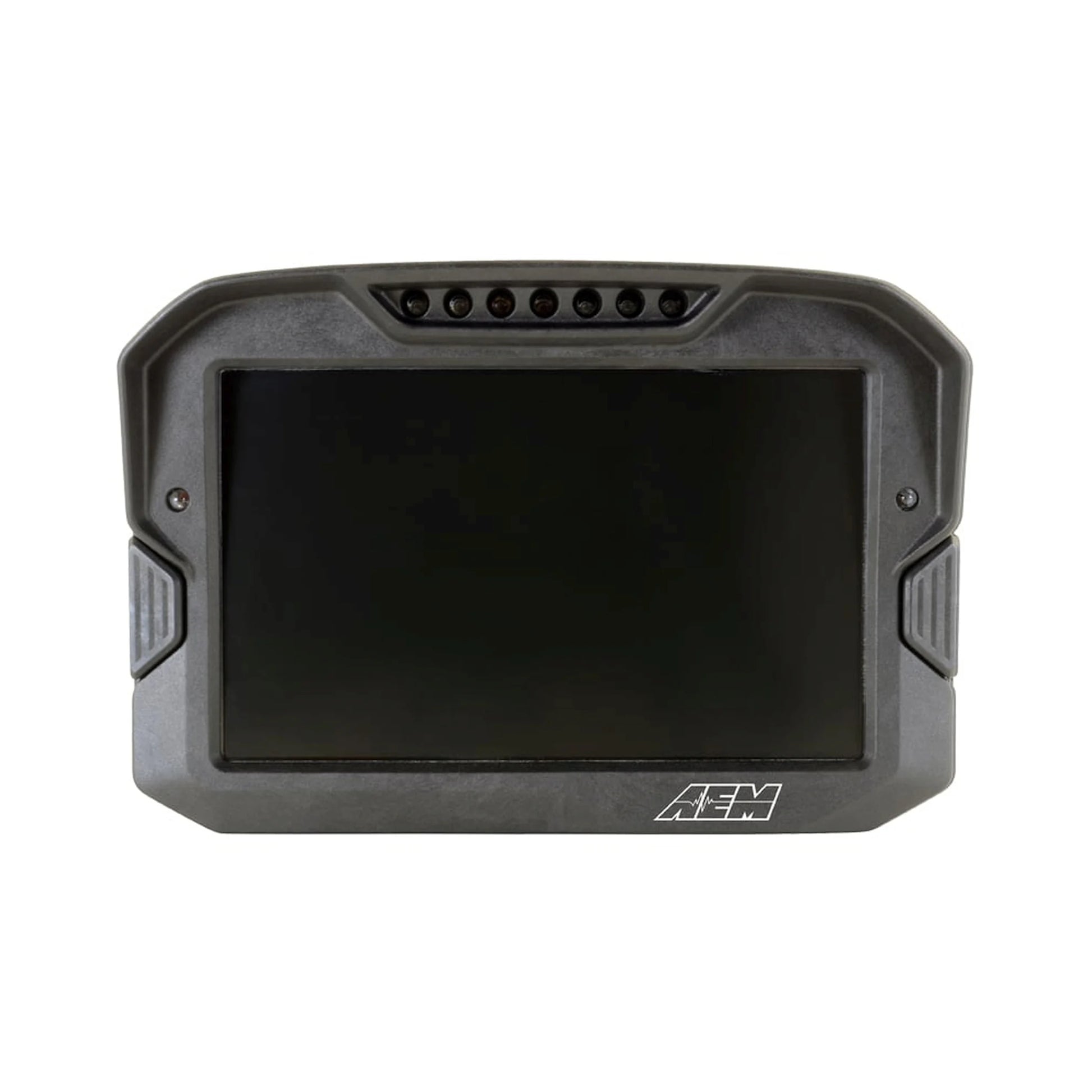

AEM CD-7 Carbon Digital Dash Display – 7" Motorsports Display

Built for serious Subaru WRX and STI builds, the AEM CD-7 Carbon Digital Dash Display gives your cockpit a professional motorsports-style data display with a large 7-inch full-color screen, carbon composite housing, programmable shift LEDs, warning pages, and CAN-based data support.

This is the best AEM dash option for most Subaru customers who want a premium digital display with a larger screen and built-in face buttons. It is ideal for street builds, track cars, race cars, swap cars, and aftermarket ECU setups.

Features

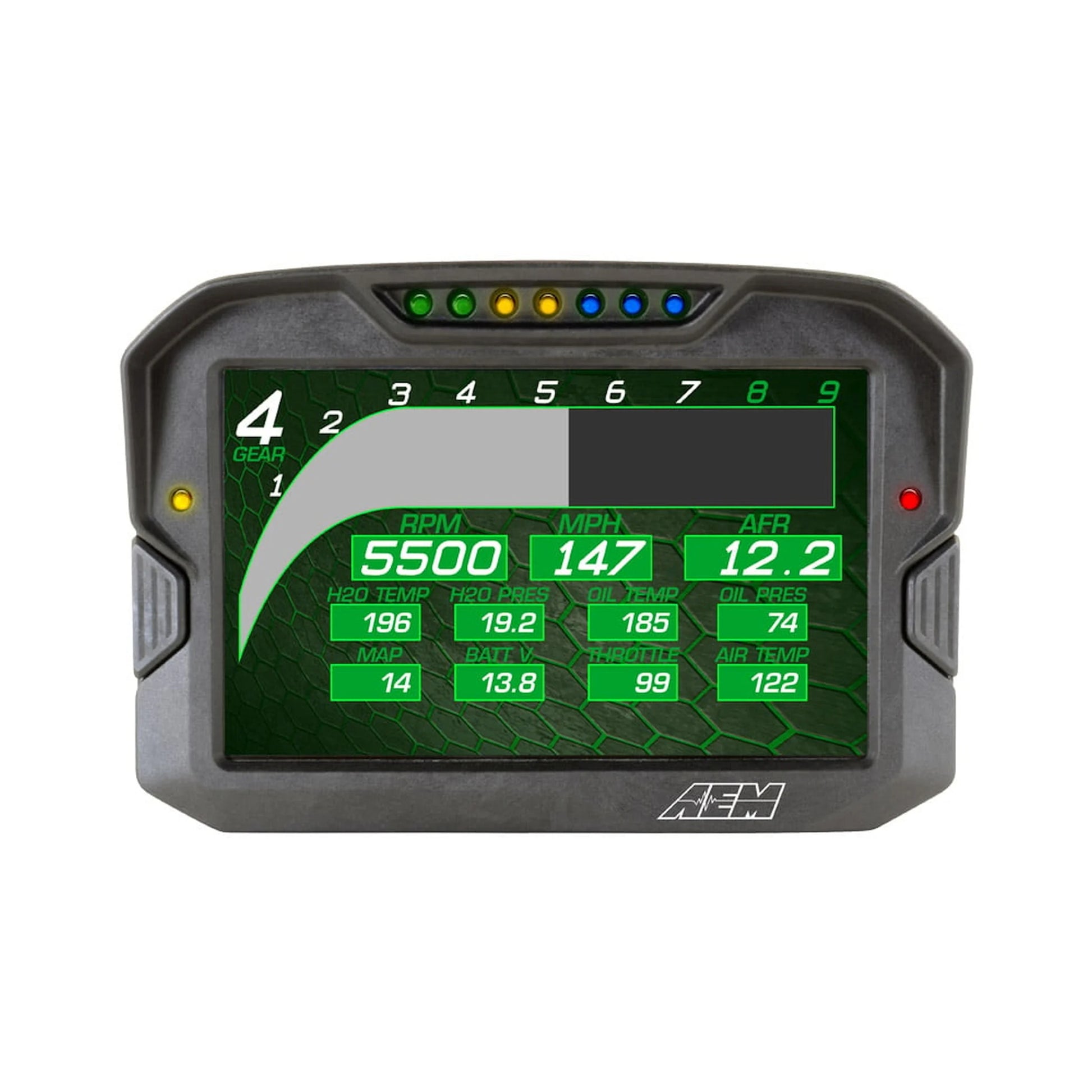

• 7-inch full-color digital display
• 800x480 screen resolution
• Direct sunlight readable display
• Lightweight carbon composite enclosure

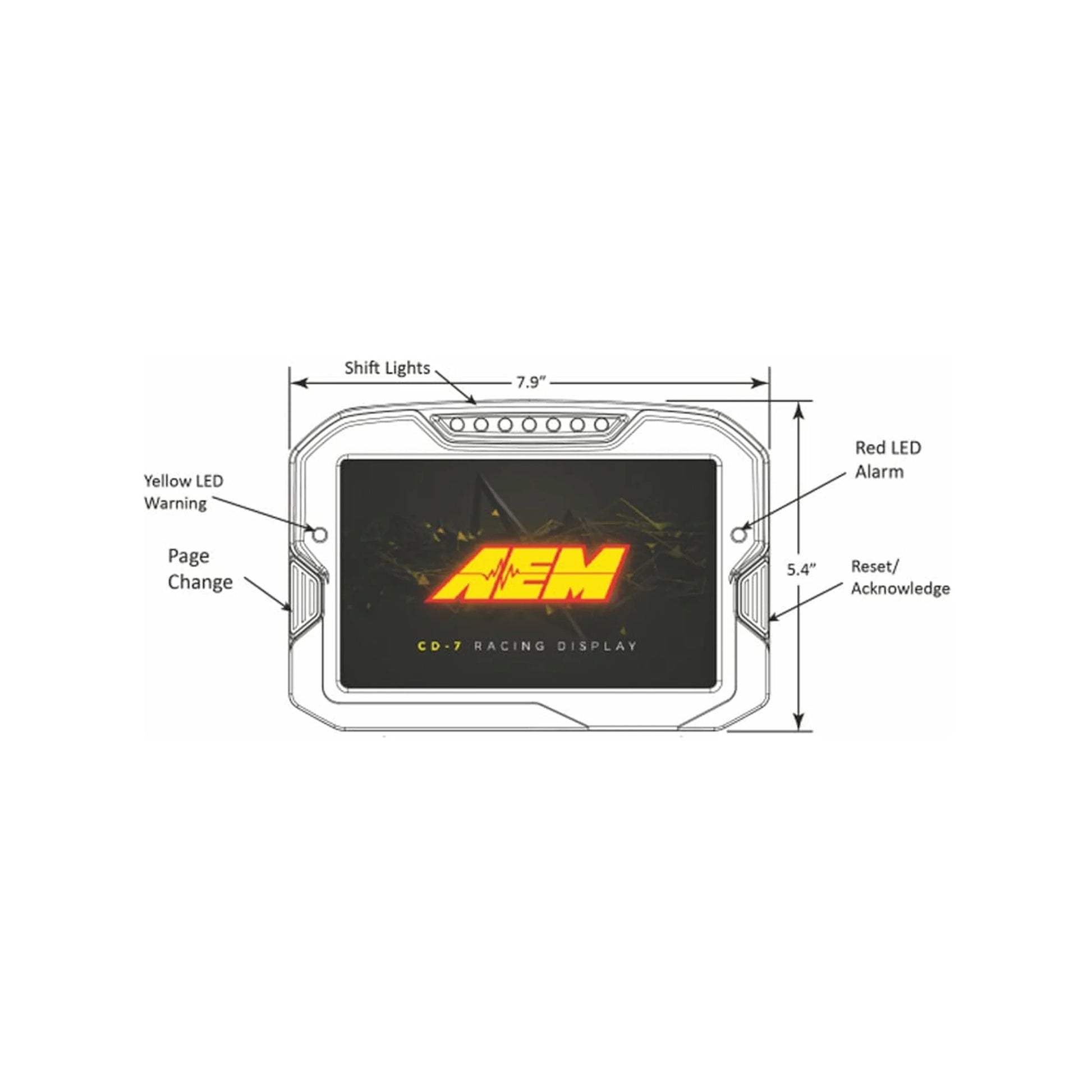

• Built-in face buttons for page changes and memory reset
• Seven programmable RPM / shift light LEDs
• Two additional programmable warning LEDs
• CAN-ready for AEMnet and compatible third-party CAN devices
• Supports custom layouts through AEM DashDesign software

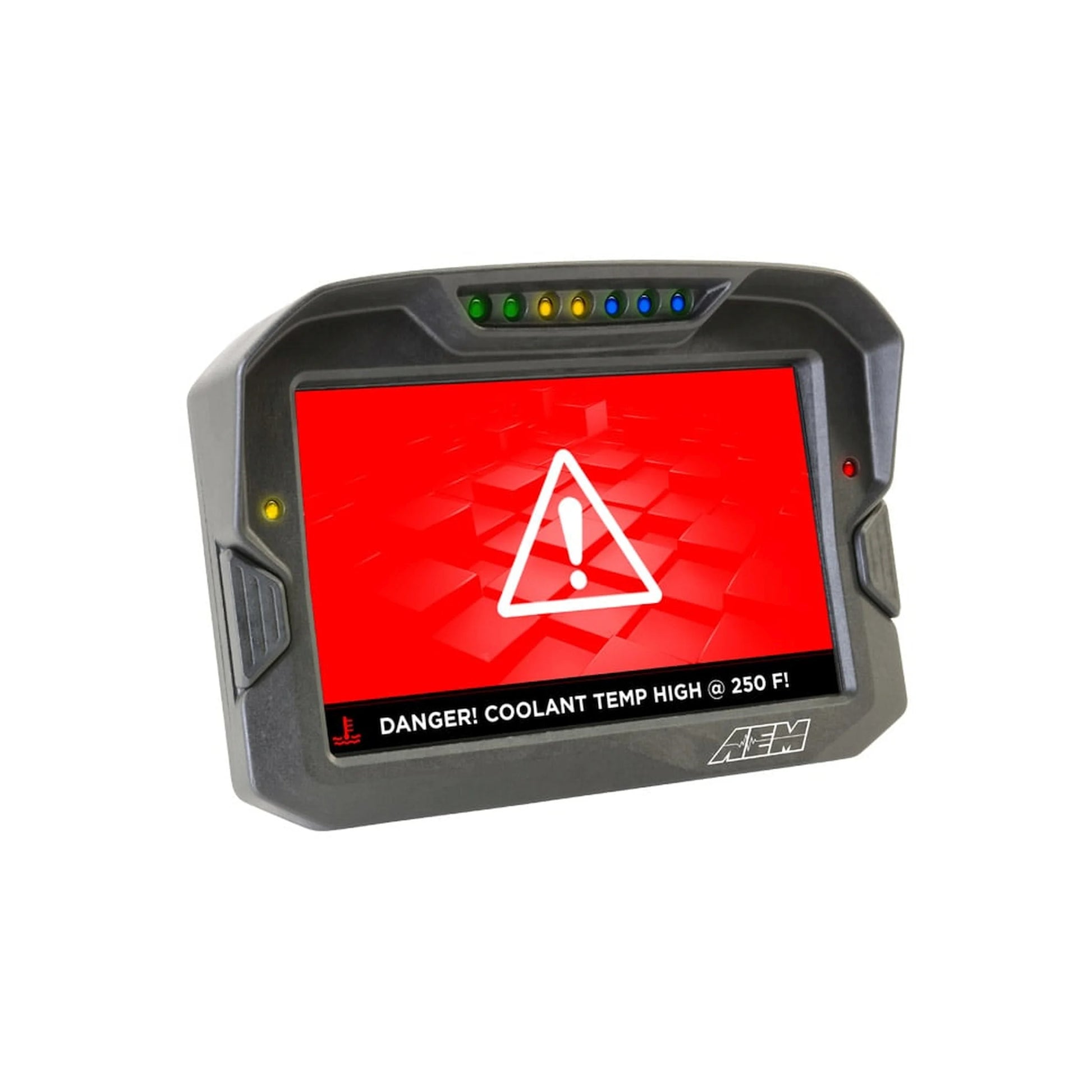

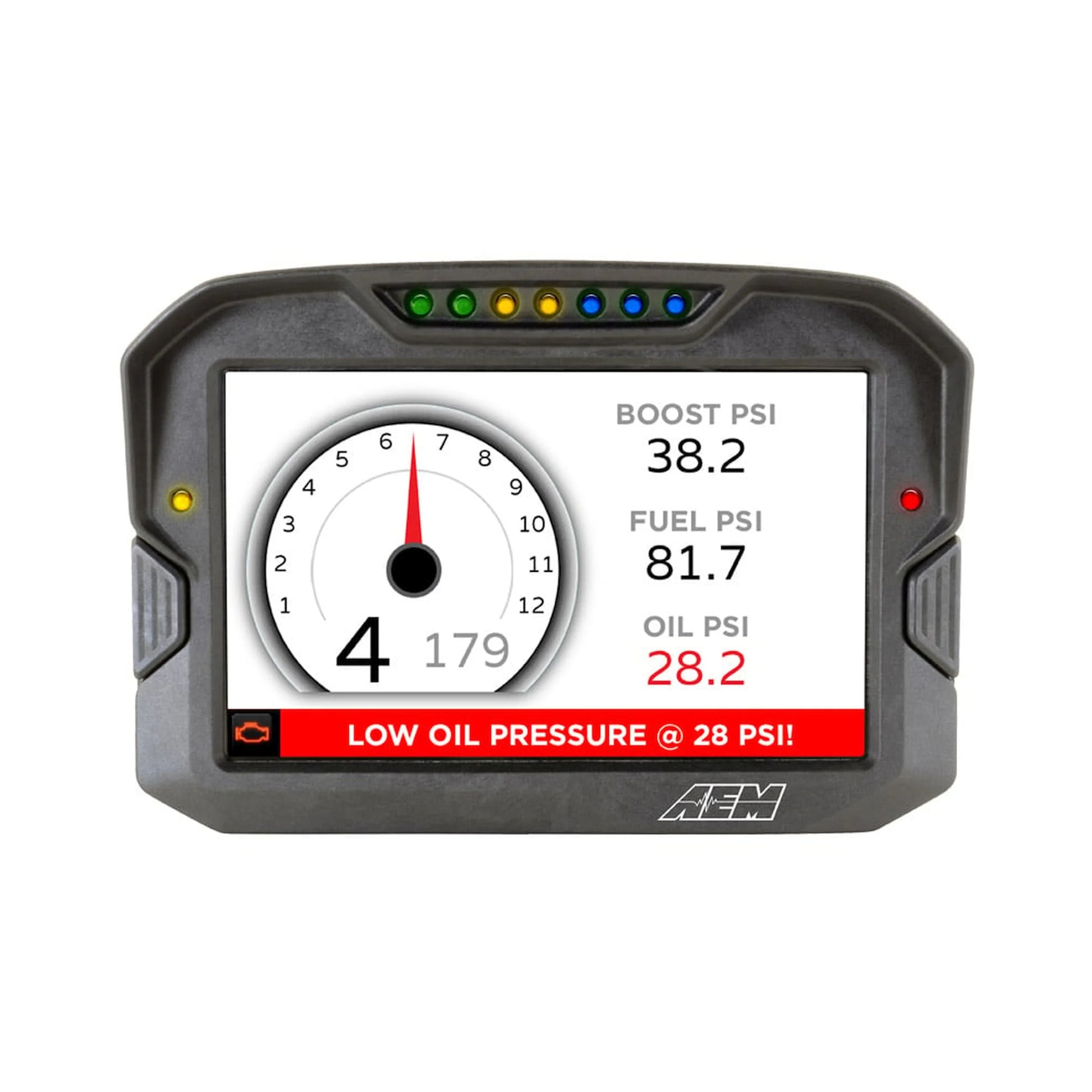

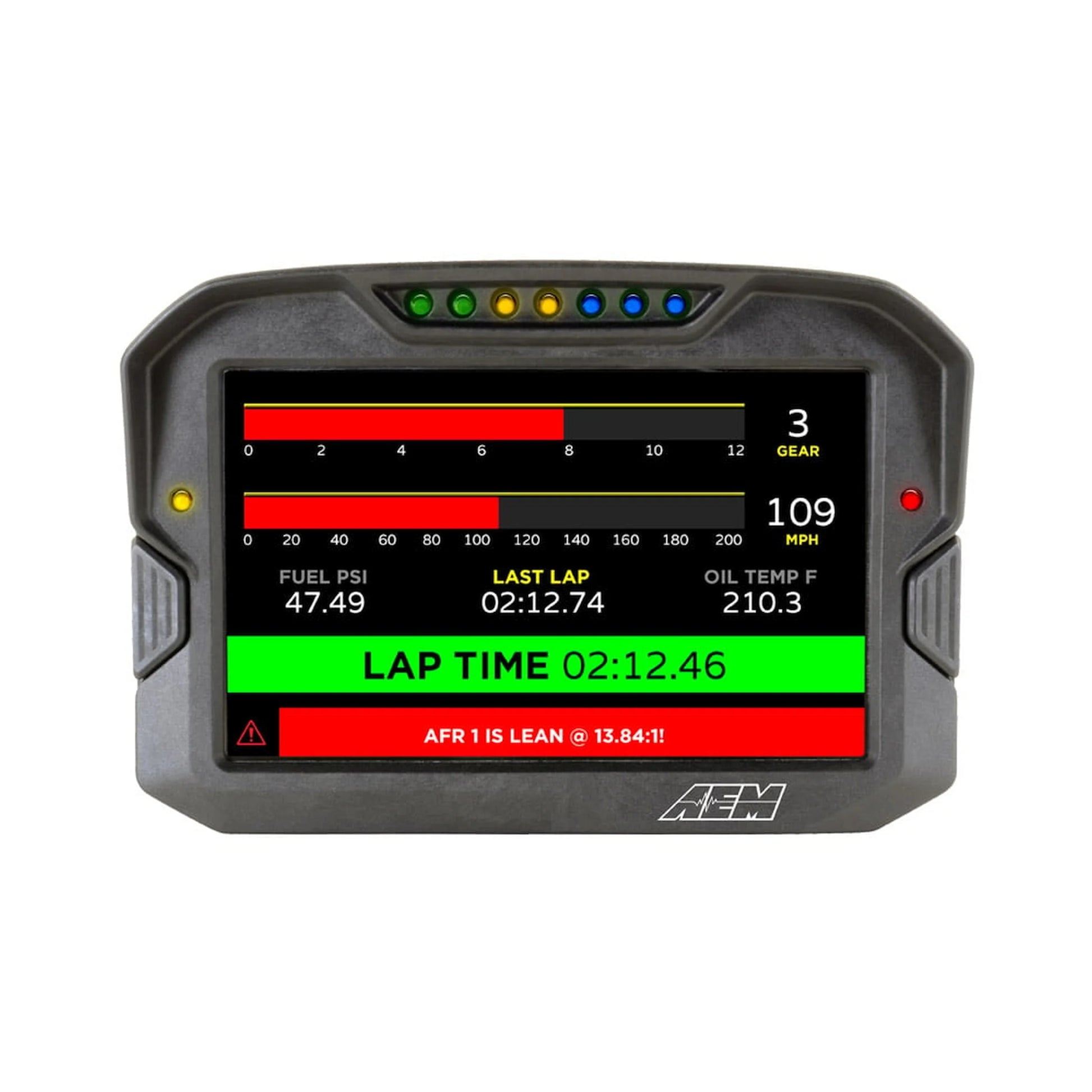

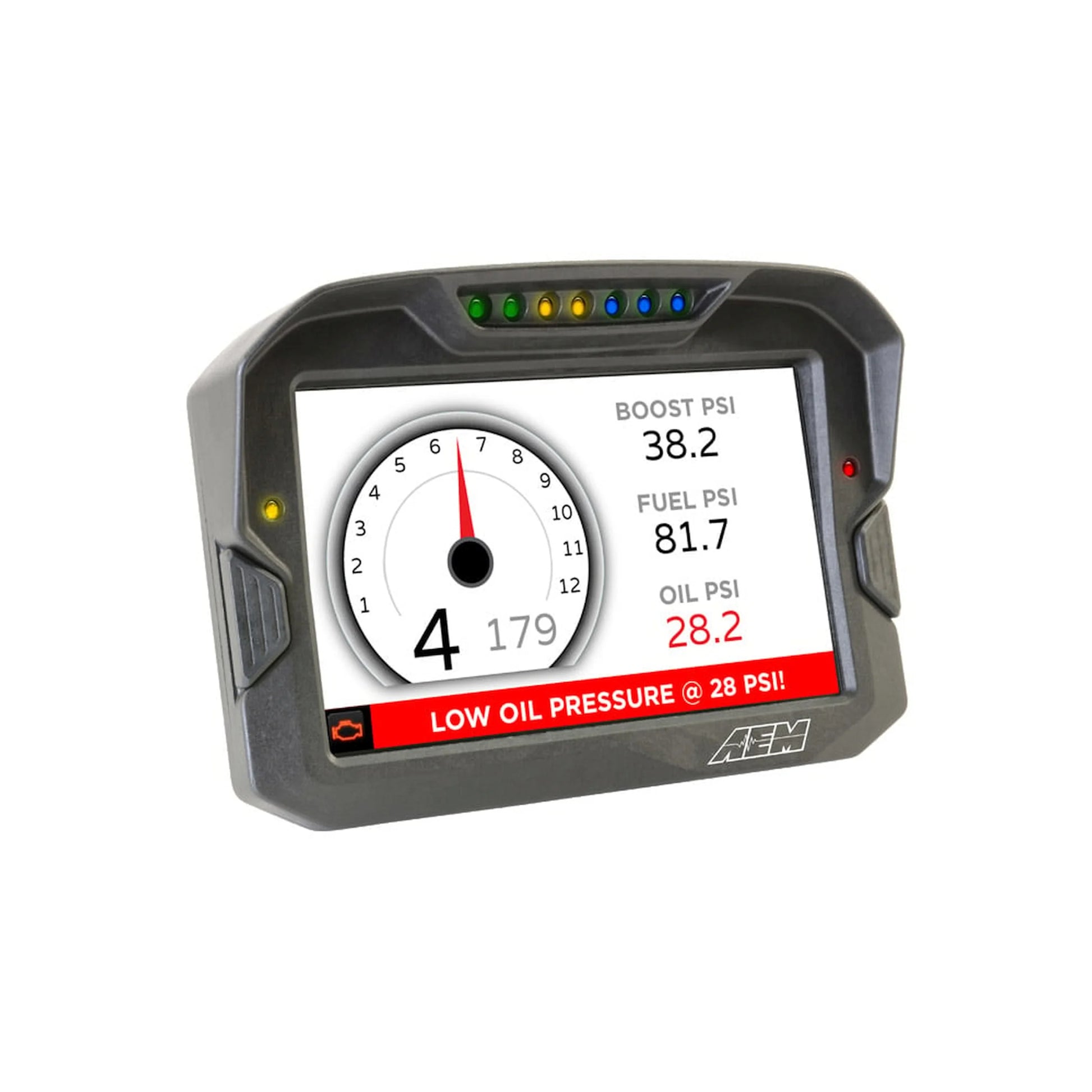

• Programmable warning pages and alerts
• Odometer function
• Wiring harness included
• Available with logging and GPS options depending on selected configuration

Fitment / Compatibility

Universal digital dash display for custom Subaru WRX/STI builds. This is not an OEM replacement cluster.

Compatible with custom Subaru applications including GC, GD, GR/GV, VA, and VB chassis when installed with the correct wiring, CAN, OBDII, aftermarket ECU, or sensor module setup.

2008+ Subaru applications may use AEM CD Dash OBDII CAN Adapter Harness 30-2217, sold separately, to display available OBDII CAN channels.

Pre-2008 Subaru applications require an aftermarket ECU/CAN output or AEM 30-2212 22 Channel CAN Sensor Module, sold separately.

Available data channels vary by model year, ECU, wiring, and vehicle CAN output. Professional installation and configuration are recommended.

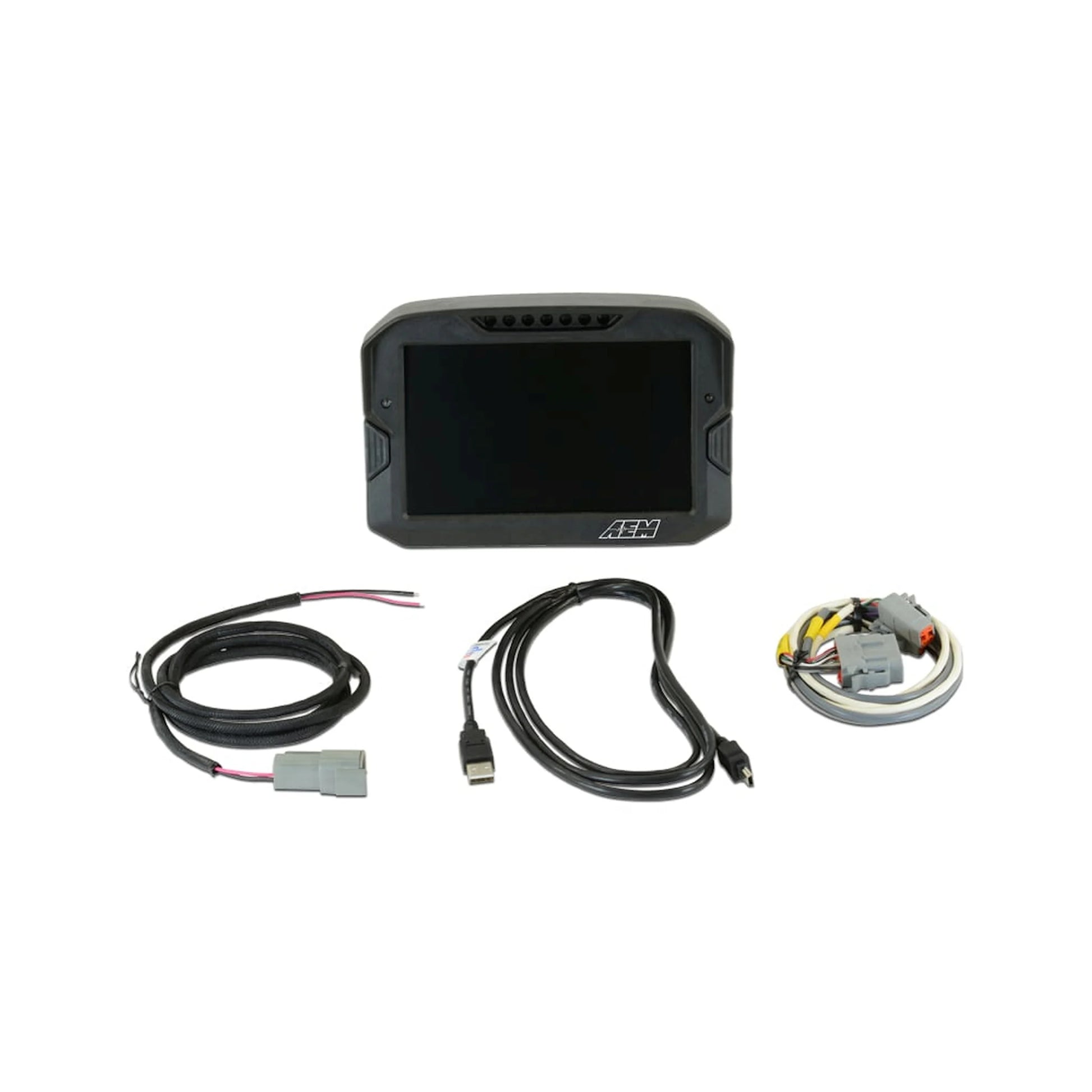

What’s Included

• AEM CD-7 Carbon Digital Dash Display
• Wiring harness

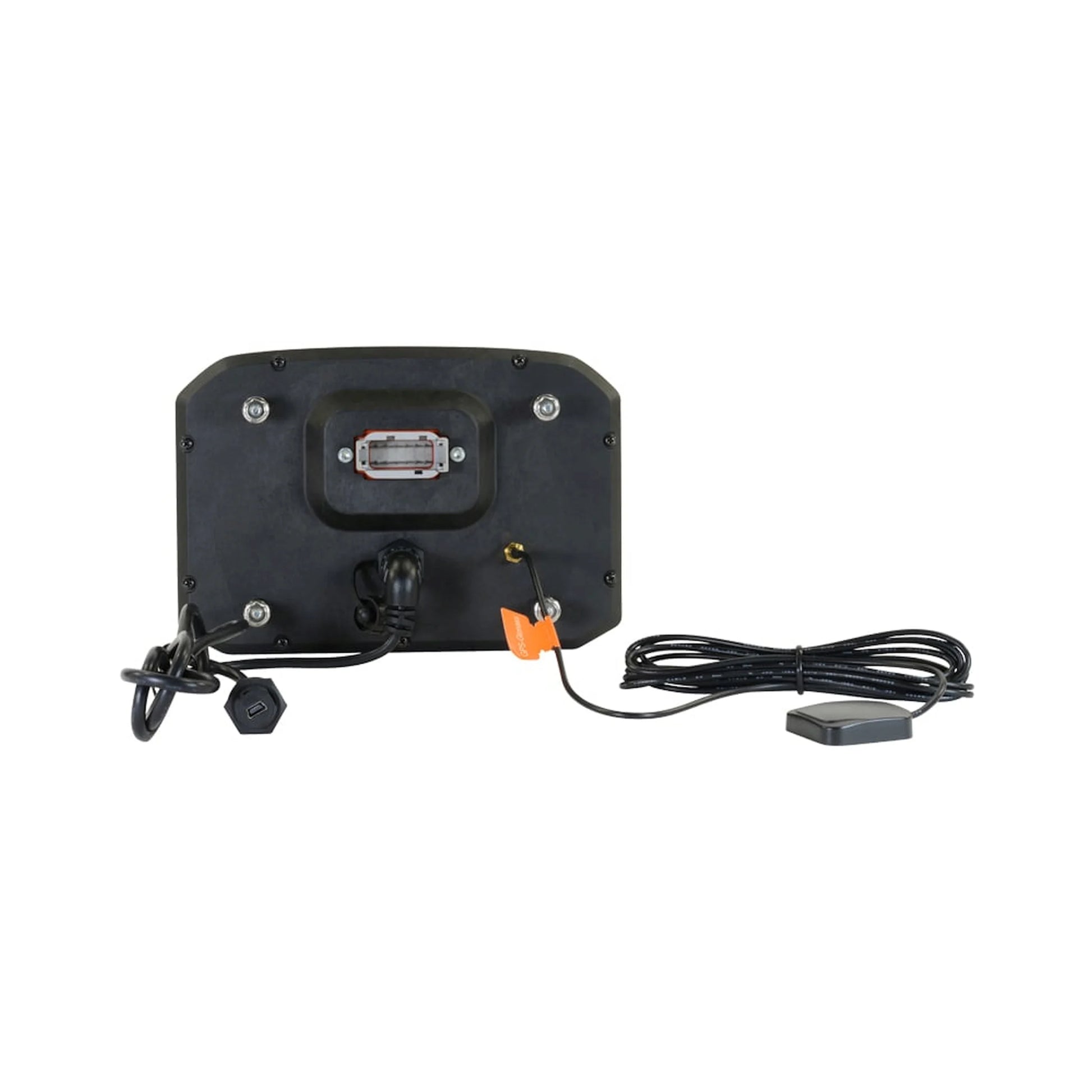

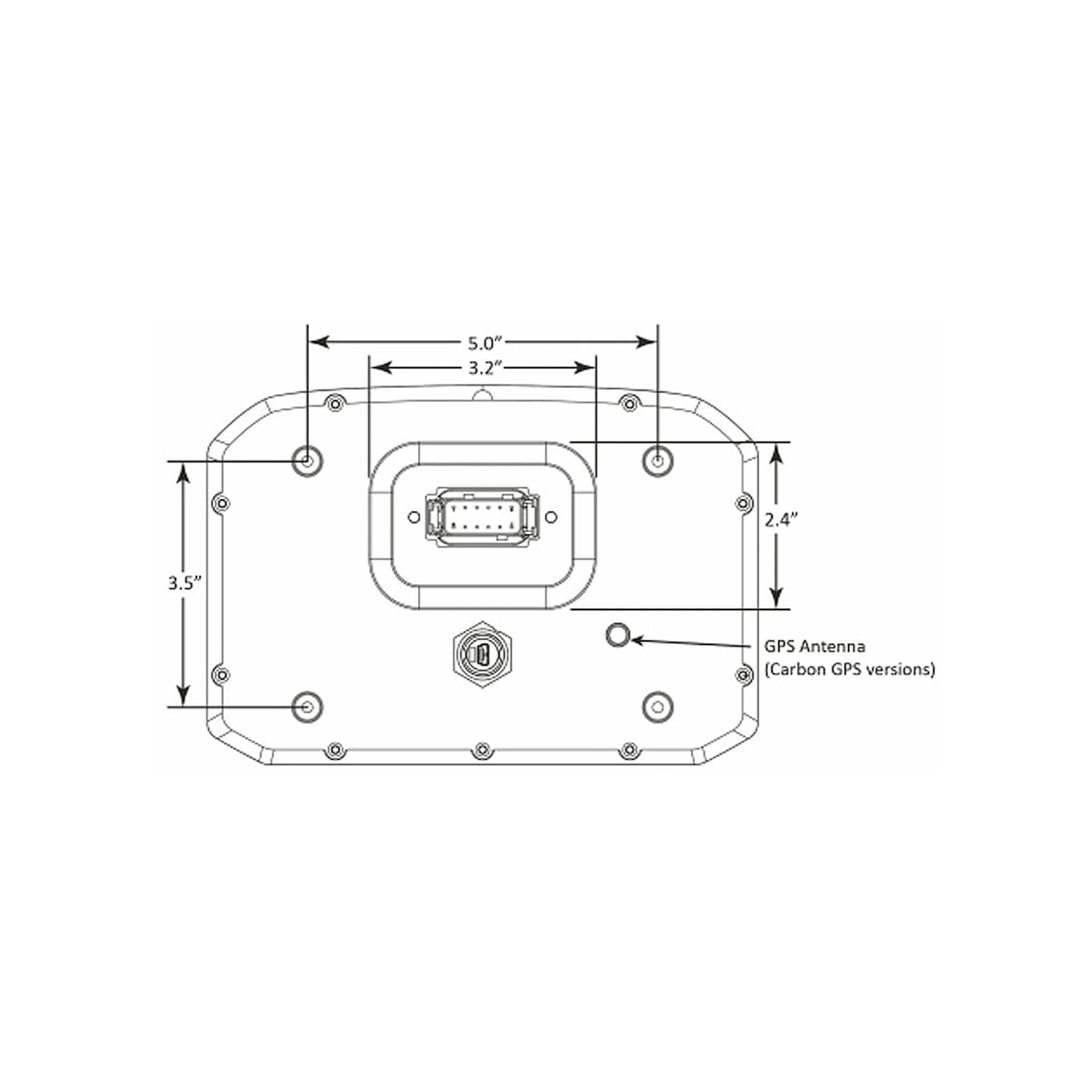

• GPS antenna included only with GPS-enabled configurations
• Internal logging included only with logging configurations

Configurations

30-5700 – CD-7 No Logging / No GPS
30-5701 – CD-7L with Logging / No GPS
30-5702 – CD-7G with GPS / No Logging
30-5703 – CD-7LG with Logging + GPS

Recommended Add-Ons

30-2217 – AEM OBDII CAN Adapter Harness for 2008+ vehicles
30-2212 – AEM 22 Channel CAN Sensor Module for pre-2008/custom sensor setups
