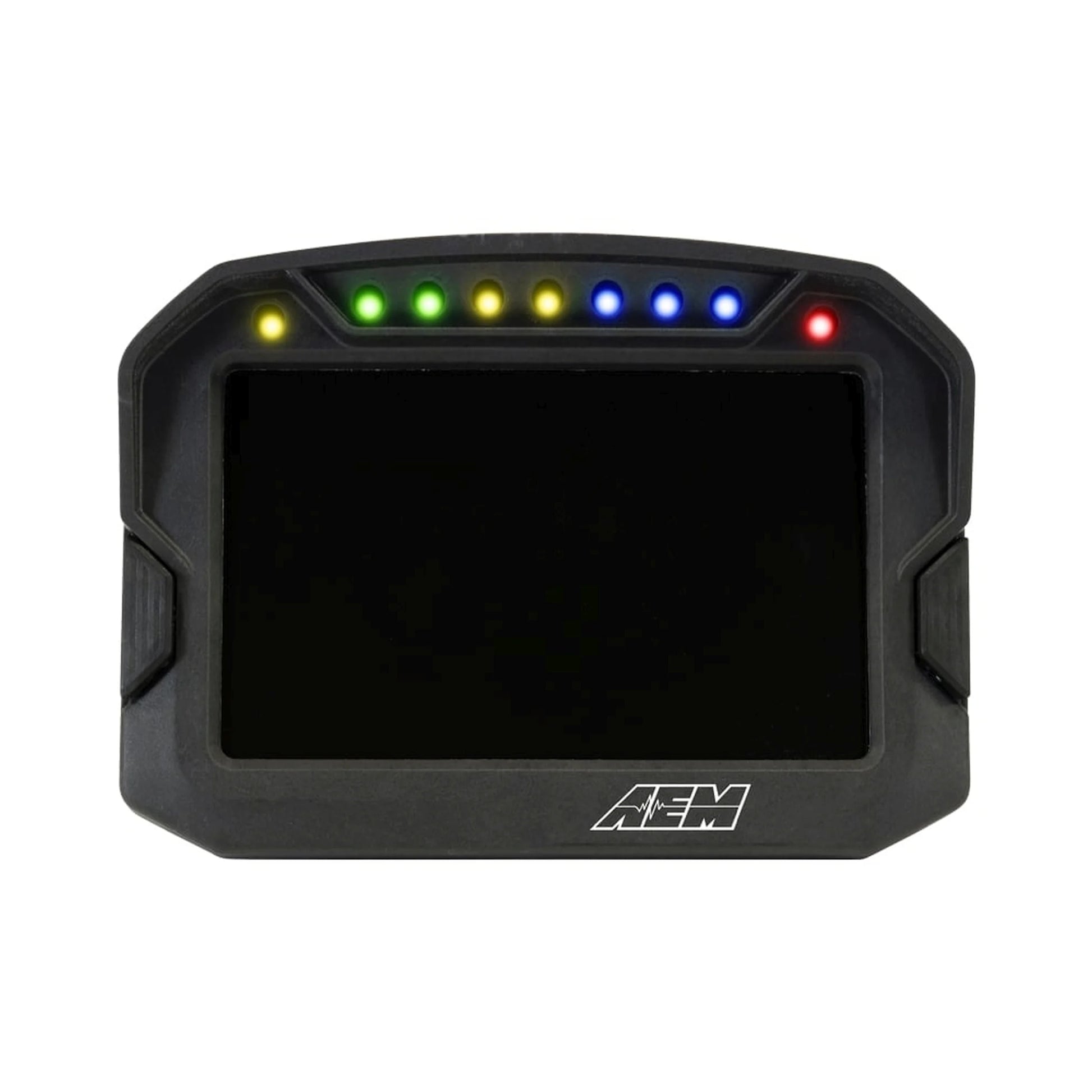

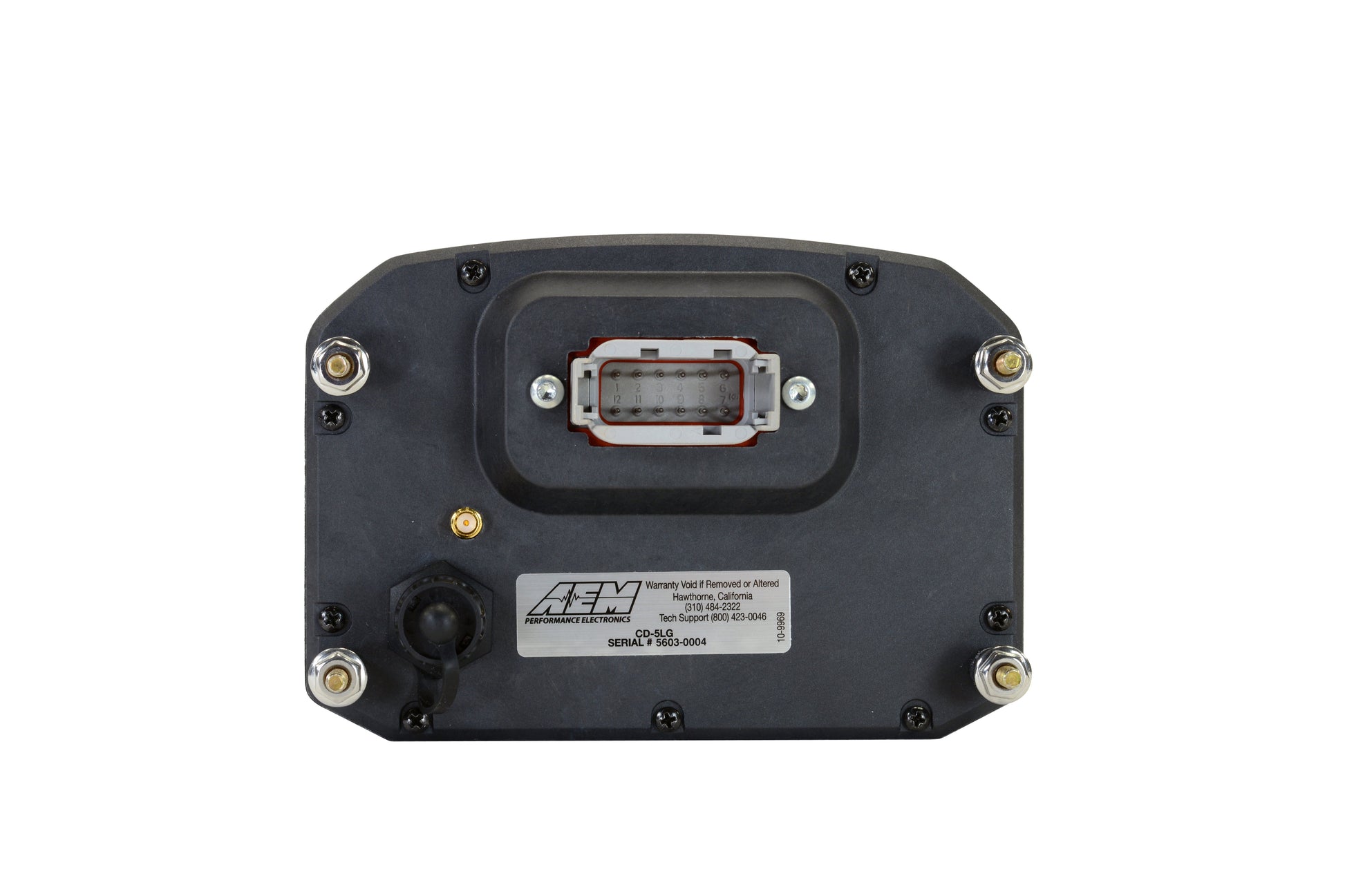

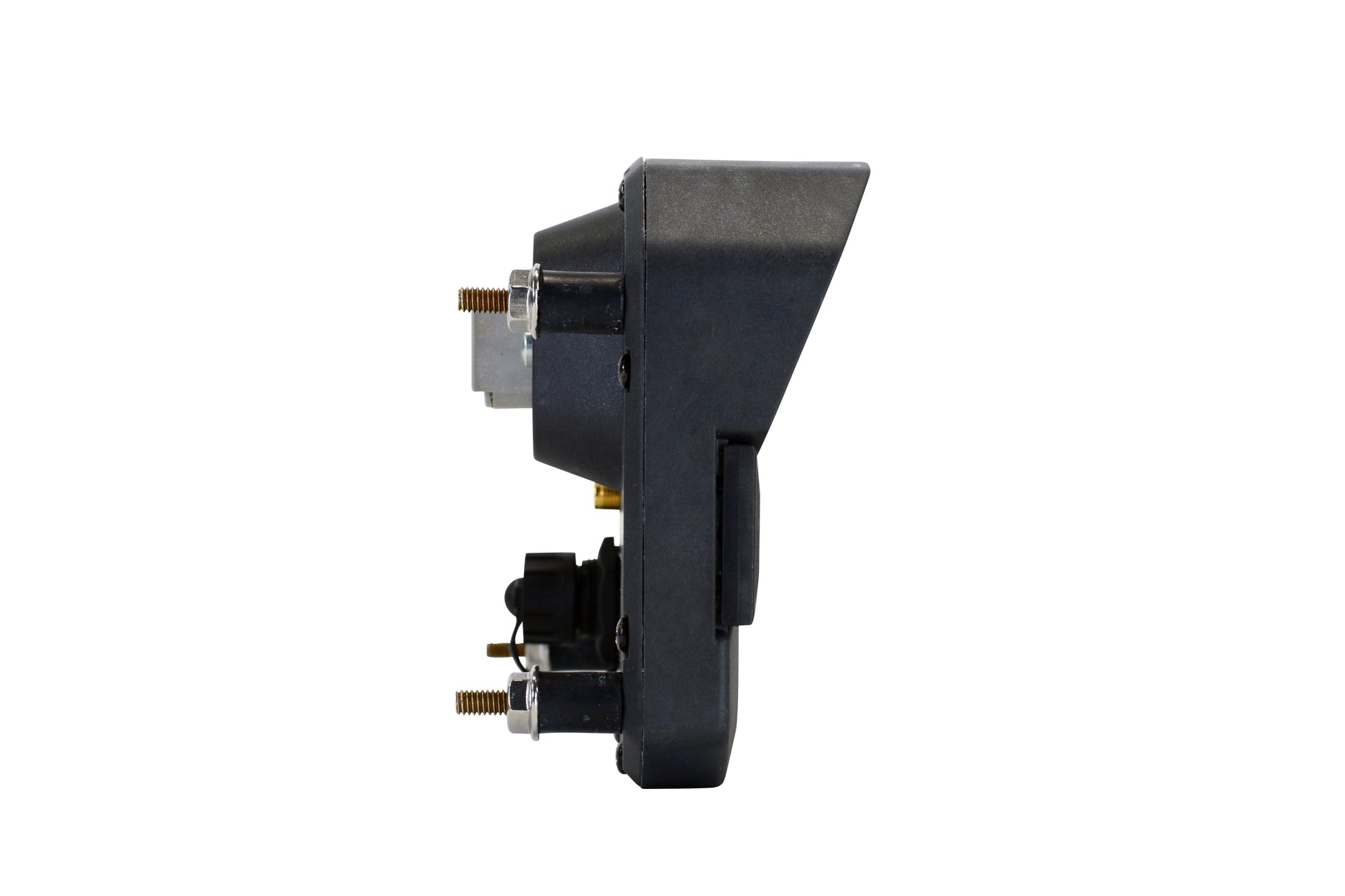

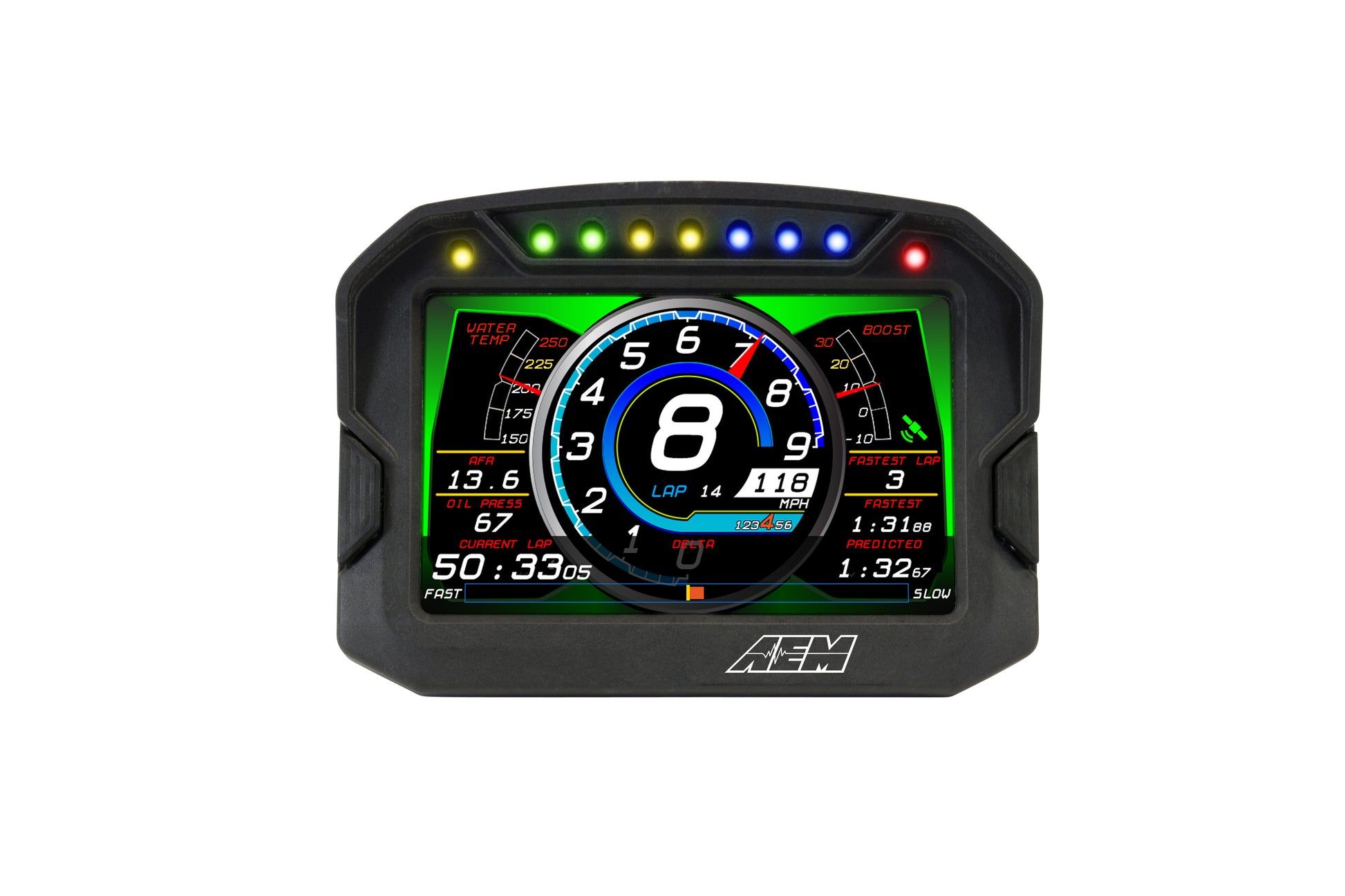

AEM CD-5 Carbon Digital Dash Display – 5" Motorsports Display

The AEM CD-5 Carbon Digital Dash Display is a compact 5-inch motorsports display designed for custom Subaru WRX/STI builds, track cars, swap cars, and aftermarket ECU applications. It gives the driver clean visibility of critical data in a smaller display package, making it a strong option for tighter interiors or builds where a lower-profile digital dash is preferred.

For Subaru owners who want AEM CD-Series functionality without the larger CD-7 screen, the CD-5 delivers a clean, professional cockpit upgrade with built-in controls and flexible CAN data support.

Features

• 5-inch full-color digital display
• 800x480 screen resolution
• Lightweight carbon composite enclosure
• Built-in face buttons for page changes and memory reset
• Seven programmable RPM / shift light LEDs
• Two additional programmable warning LEDs
• CAN-ready for AEMnet and compatible third-party CAN devices

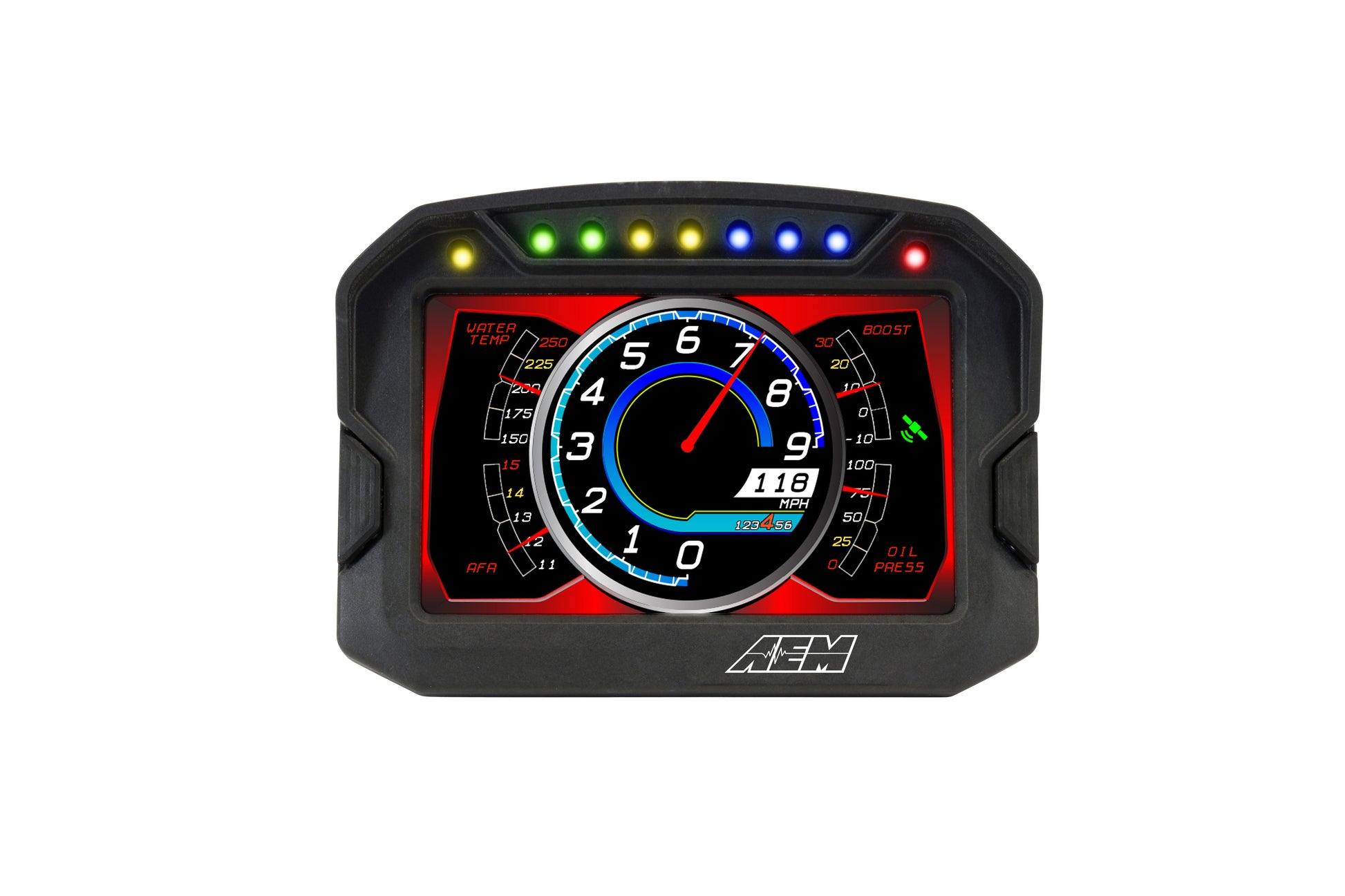

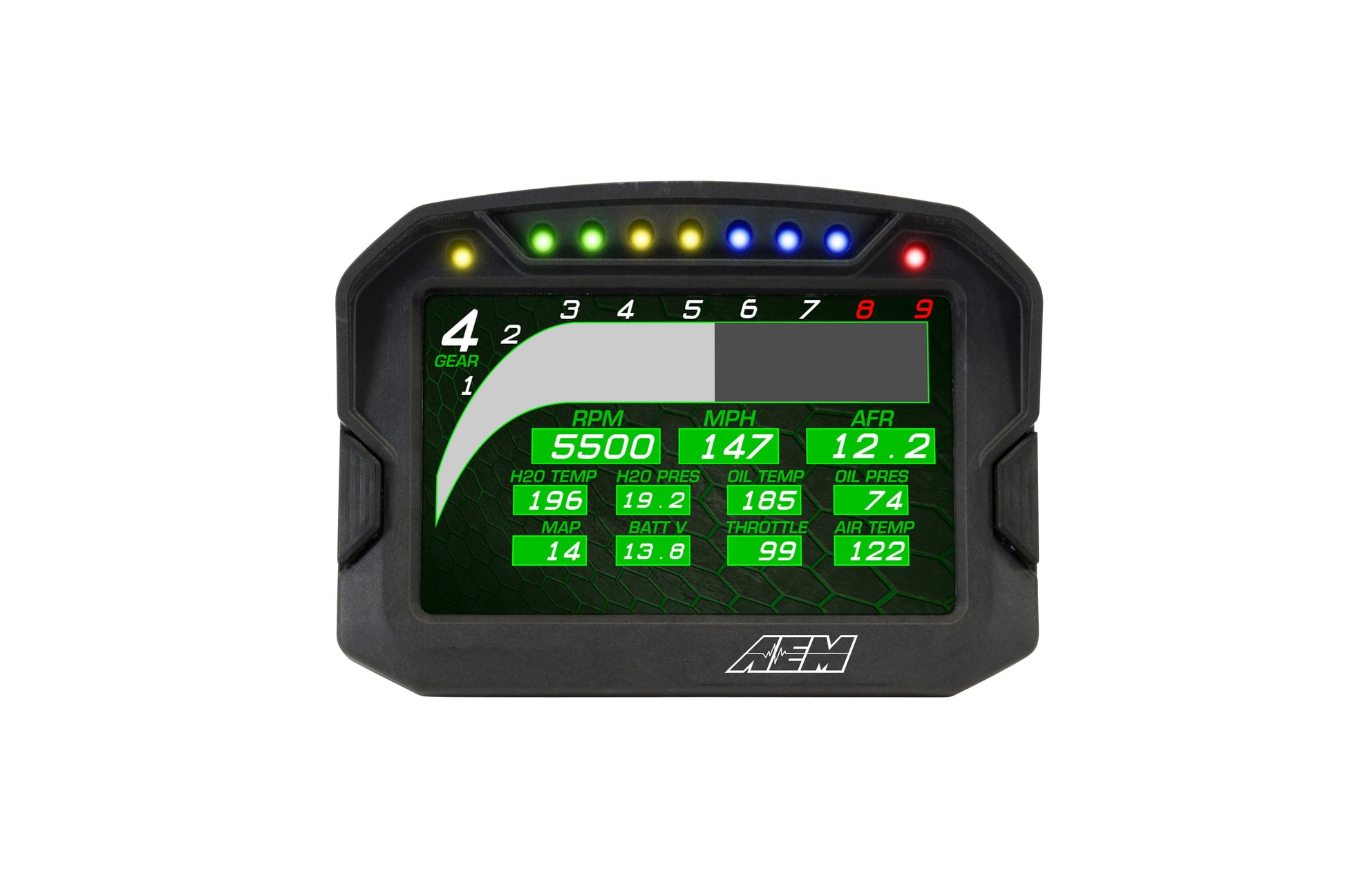

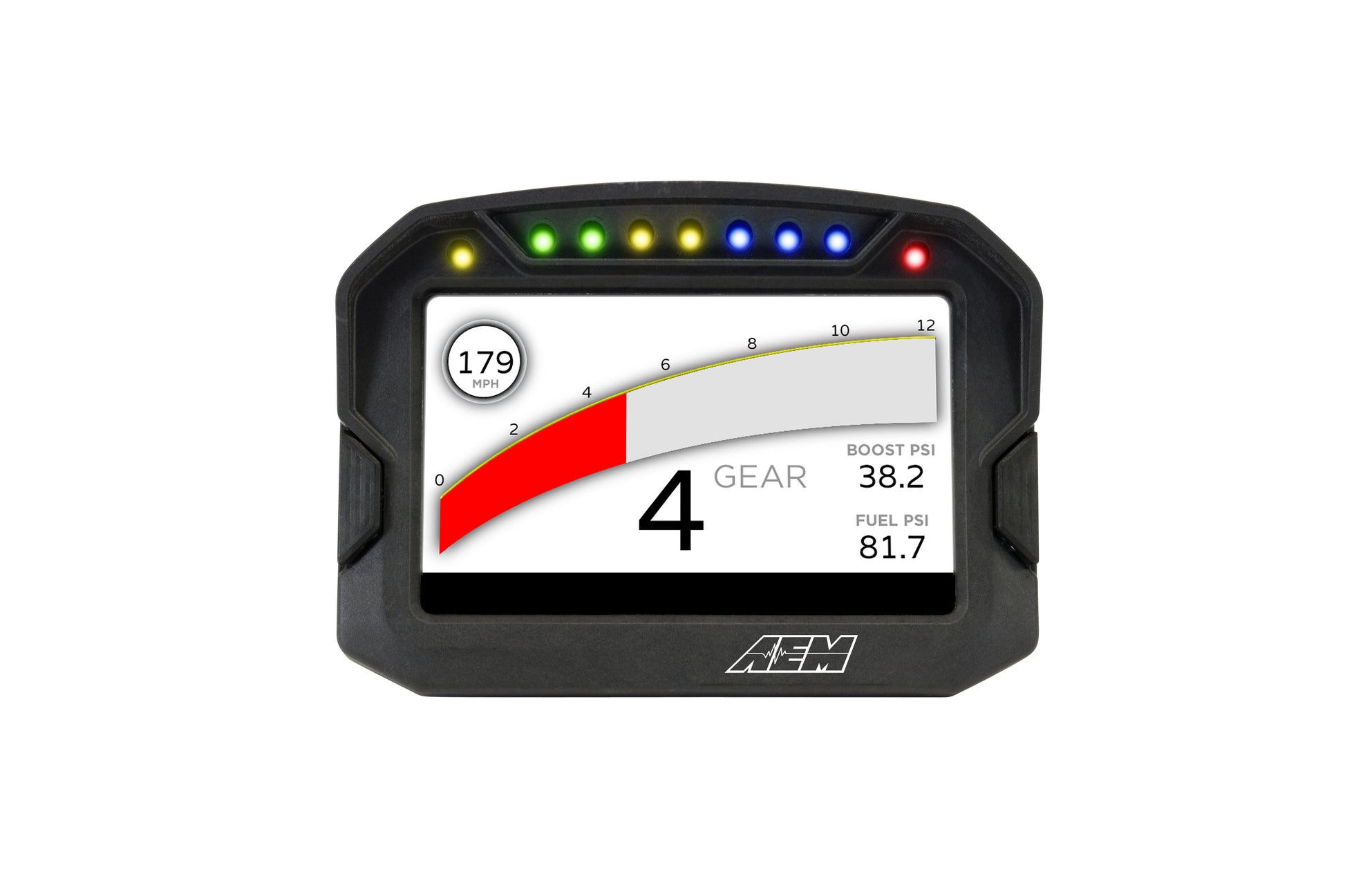

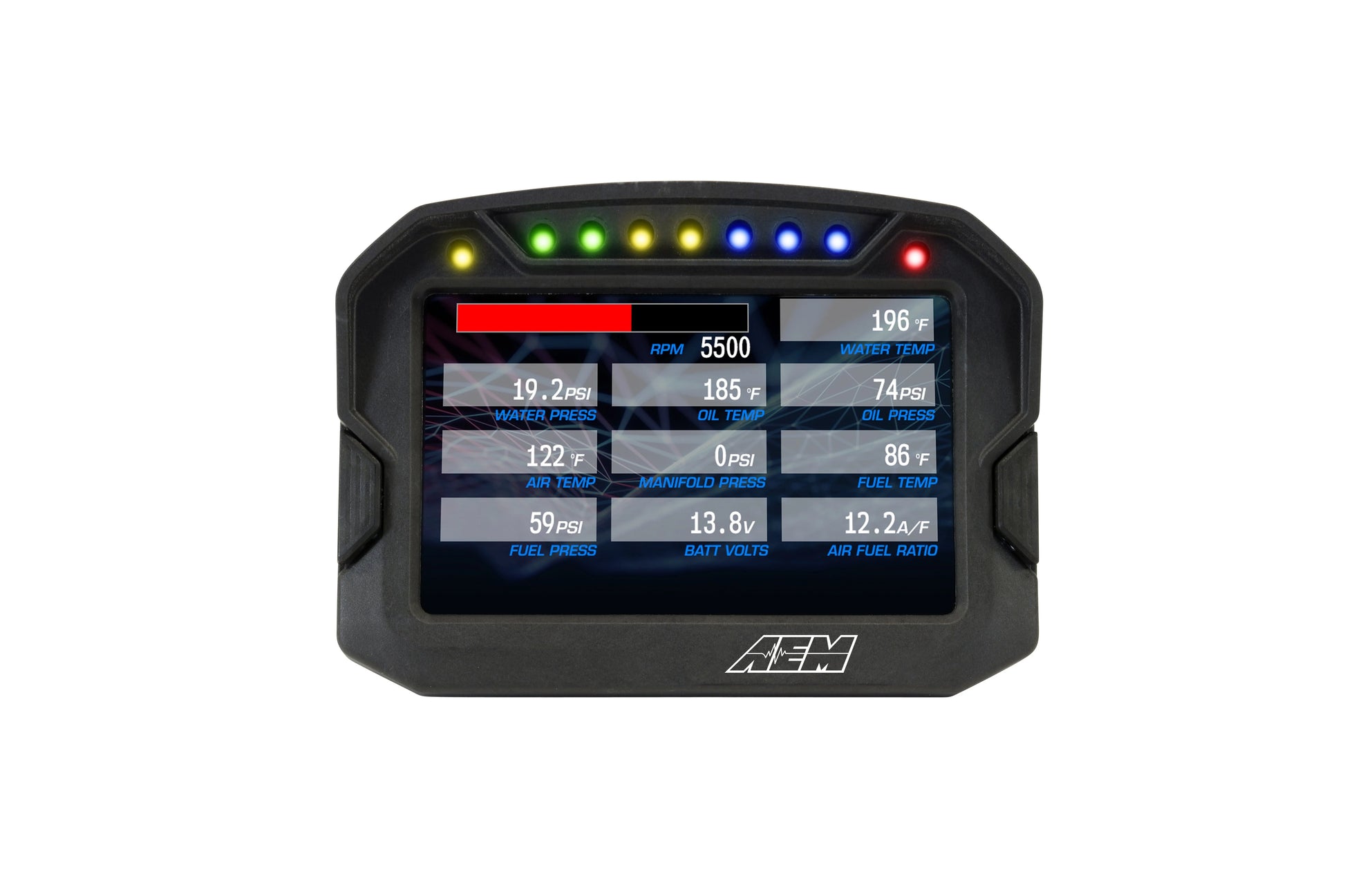

• Supports custom layouts through AEM DashDesign software
• Programmable warning pages and alerts
• Odometer function
• Wiring harness included
• Available with logging and GPS options depending on selected configuration

Fitment / Compatibility

Universal digital dash display for custom Subaru WRX/STI builds. This is not an OEM replacement cluster.

Compatible with custom Subaru applications including GC, GD, GR/GV, VA, and VB chassis when installed with the correct wiring, CAN, OBDII, aftermarket ECU, or sensor module setup.

2008+ Subaru applications may use AEM CD Dash OBDII CAN Adapter Harness 30-2217, sold separately, to display available OBDII CAN channels.

Pre-2008 Subaru applications require an aftermarket ECU/CAN output or AEM 30-2212 22 Channel CAN Sensor Module, sold separately.

Available data channels vary by model year, ECU, wiring, and vehicle CAN output. Professional installation and configuration are recommended.

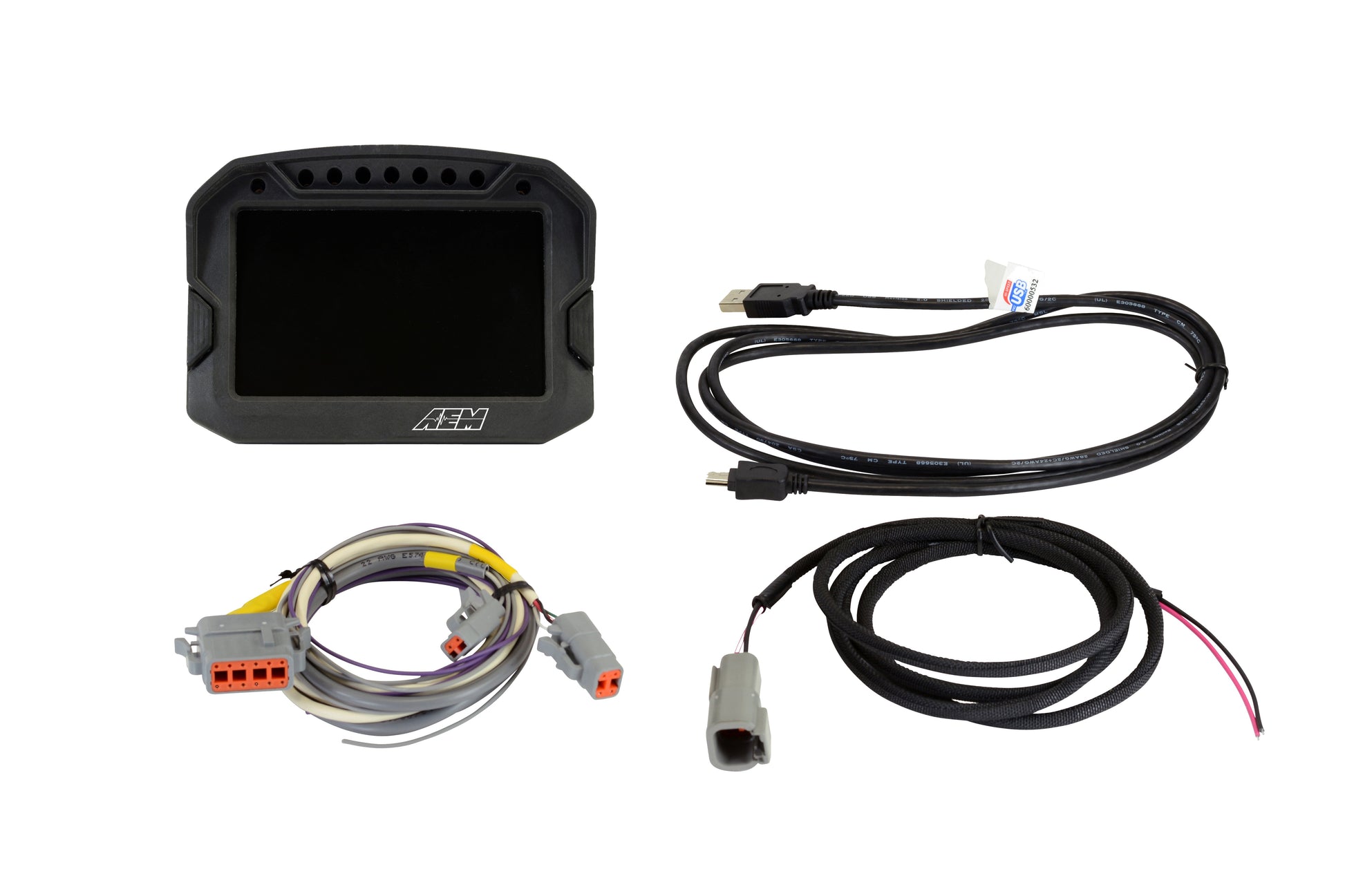

What’s Included

• AEM CD-5 Carbon Digital Dash Display
• Wiring harness
• GPS antenna included only with GPS-enabled configurations
• Internal logging included only with logging configurations

Configurations

30-5600 – CD-5 No Logging / No GPS
30-5601 – CD-5L with Logging / No GPS
30-5602 – CD-5G with GPS / No Logging
30-5603 – CD-5LG with Logging + GPS

Recommended Add-Ons

30-2217 – AEM OBDII CAN Adapter Harness for 2008+ vehicles
30-2212 – AEM 22 Channel CAN Sensor Module for pre-2008/custom sensor setups
